NaviCross™

Support Catheter

Description

Supporting Your Success

NaviCrossTM Support Catheter is dedicated to reach and cross complex lesions in challenging anatomy during femoro-popliteal and below-the-knee interventions.

Characteristics

  • ​Stainless Steel Double-Braiding

    ​Highly kink-resistant with great torque control and optimal push transition from proximal shaft to distal tip1

  • ​Small Crossing Profile

    Provides seamless guidewire-to-catheter transition leading to high support and successful lesion crossing1

  • ​Hydrophilic Mcoat™

    ​Ensures best-in-class trackability in challenging anatomy and great crossability of complex lesions1

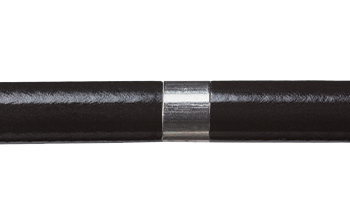

  • ​Three Radiopaque Markers

    ​Provides high visibility1

    Facilitates accurate assessment of position and intraluminal measurement of stent and balloon sizes

  • ​Telescope Technique

    ​NaviCross 0.018" can be smoothly advanced through NaviCross 0.035" with a seamless transition, to offer more pushability2 when tracking difficult stenoses and the ability to reach more distal lesions

Preparation

Video instructions




"This is a recording of the webinar Treatment Strategies for Complex Femoropopliteal Lesions given during the CIRSE Congress 2020 to allow healthcare professionals to watch the event on demand. This recording is to be used for training purposes only and in no case intended for the general public. Any claims and views expressed in this video reflect solely the speaker's own experiences or opinions and do not necessarily reflect the position of Terumo. No part of the recording may be reproduced, distributed, transmitted in any form or by any means, electronic or manually, without the prior written consent of Terumo Europe NV."





"This is a recording of the webinar BTK Revascularisation: How to be Succesful given during the CIRSE Congress 2020 to allow healthcare professionals to watch the event on demand. This recording is to be used for training purposes only and in no case intended for the general public. Any claims and views expressed in this video reflect solely the speaker's own experiences or opinions and do not necessarily reflect the position of Terumo. No part of the recording may be reproduced, distributed, transmitted in any form or by any means, electronic or manually, without the prior written consent of Terumo Europe NV."


​​




Terumo Europe @ Incathlab symposium

Clinical evidence

See all clinical evidence

General specifications

​Braiding

Double-braided stainless steel

​Wire compatibility

0.035”/0.89 mm, 0.018”/0.46 mm

​Outer diameter

4 Fr (NaviCross 0.035")

2.6 Fr (NaviCross 0.018")

​Catheter length

65, 90, 135, 150 cm

​Hydrophilic coating

M CoatTM, 40 cm distally

​Markers

3 radiopaque markers:

1 mm from tip – 40 mm and 60 mm from precedent marker

​​Tip Shape

Straight and 30° Angled


Item specifications

NaviCross 0.035​"
​0.035" / 0.89 mm Wire compatibility
​65 cm
​90 cm
​135 cm
150 cm​
​Tip Shape
​Straight
​WS*NS350G3HM
​WS*NS35093HM
​WS*NS350N3HM
​WS*NS35153HM
​Angled
​​WS*NA350G3HM
​WS*NA35093HM
​WS*NA350N3HM
​WS*NA35153HM

​NaviCross 0.018"
​0.018" / 0.46 mm Wire compatibility
​65 cm
​90 cm
​135 cm
150 cm​
​Tip Shape
​Straight
​PN*NS180G3HM
​​PN*NS18093HM
​​PN*NS180N3HM
​​PN*NS18153HM
​Angled
​​PN*NA180G3HM
​​​PN*NA18093HM
​​​PN*NA180N3HM
​​​PN*NA18153HM
