Senri™

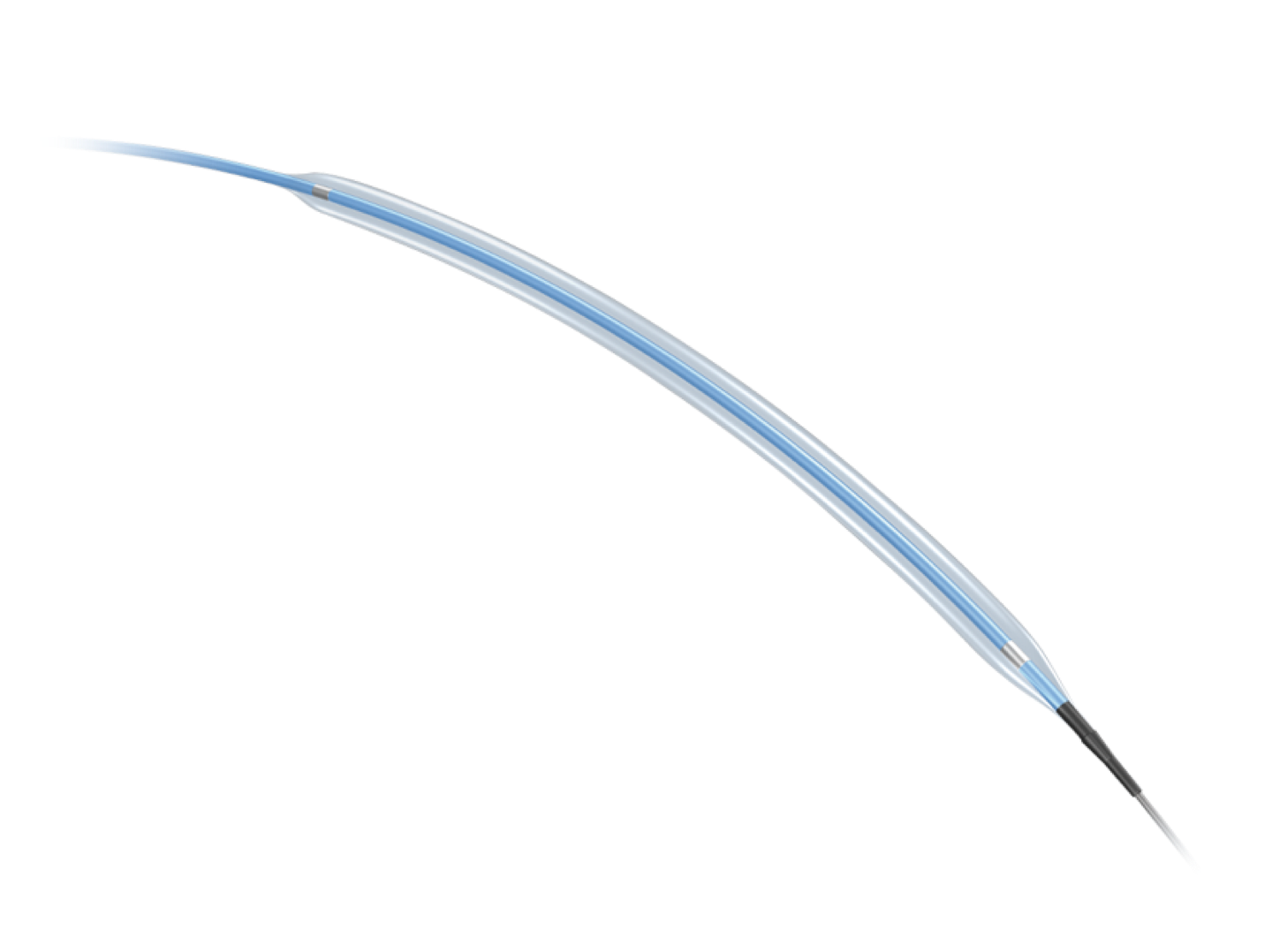

PTA Balloon Dilatation Catheter

Description

Combining finesse and pushability

Senri is a percutaneous transluminal angioplasty (PTA) balloon dilatation catheter for peripheral indications. It is designed specifically for stenosis dilatation in arteries, veins, and artificial blood vessels in regions other than the cephalic, cervical and cardiac vessels.

Characteristics

Low-profile, semi-compliant balloon with a hydrophilic coating

  • Three-fold (ø 2.0 - 6.0 mm) and four-fold (ø 7.0 - 8.0 mm) balloons feature a low crossing profile with high flexibility for successful crossability and good trackability

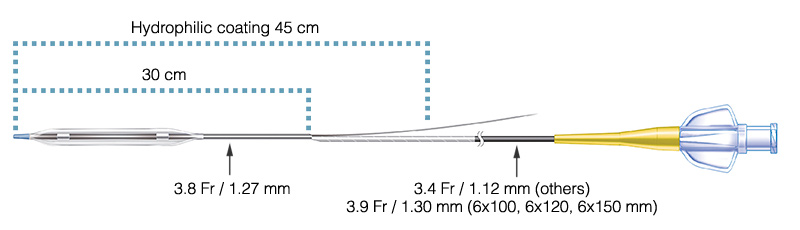

  • The distal, 45 cm catheter segment features a hydrophilic coating for swift and easy navigation through even complex anatomy

Dedicated shaft design

  • Combines the pushability of a stainless steel hypotube shaft with the kink resistance of a polymer shaft in even cross-over procedures with sharp angulated bifurcations
  • Maintains very fast deflation times

Broad range of sizes

  • Balloon diameters from 2 – 8 mm and lengths up to 150 mm — suitable for a great variety of peripheral interventional procedures

General specifications

Balloon materialPolyamide
Balloon folding 3-folded (ø 2.0 - 6.0 mm)
4-folded (ø 7.0 - 8.0 mm)
Maximum guidewire0.018" (0.46 mm)
Effective catheter length150 cm

Item specifications

Balloon diameter ​Balloon length ​Minimum sheath sizeMinimum guiding catheter​Nominal pressure ​Rated burst pressure​ ​
40 mm60 mm80 mm100 mm120 mm150 mm
2.00 mm

BD-S2040L

BD-S2060L

BD-S2080L

BD-S20100L

BD-S20120L

BD-S20150L

​4 Fr
(1,33 mm)

​6 Fr
(2.0 mm)

​8 atm/ 811 kPa

​14 atm/ 1419 kPa

3.00 mm

BD-S3040L

BD-S3060L

BD-S3080L

BD-S30100L

BD-S30120L

BD-S30150L

​4 Fr
(1,33 mm)

​6 Fr
(2.0 mm)

​8 atm/ 811 kPa

​14 atm/ 1419 kPa

4.00 mm

BD-S4040L

BD-S4060L

BD-S4080L

BD-S40100L

BD-S40120L

BD-S40150L

​4 Fr
(1,33 mm)

​6 Fr
(2.0 mm)

​8 atm/ 811 kPa

​14 atm/ 1419 kPa

5.00 mm

BD-S5040L

BD-S5060L

BD-S5080L

BD-S50100L

BD-S50120L

BD-S50150L

​4 Fr
(1,33 mm)

​6 Fr
(2.0 mm)

8 atm/ 811 kPa​

​14 atm/ 1419 kPa

6.00 mm

BD-S6040L

​4 Fr
(1,33 mm)

​6 Fr
(2.0 mm)

​8 atm/ 811 kPa

​14 atm/ 1419 kPa

​BD-S6060L

​BD-S6080L

​BD-S60100LH

​BD-S60120LH

​BD-S60150LH

​5 Fr
(1,67 mm)

​7 Fr
(2.33 mm)

​8 atm/ 811 kPa

​14 atm/ 1419 kPa

​7.00 mm

BD-S7040L

BD-S7060L

BD-S7080L

​5 Fr
(1,67 mm)

​7 Fr
(2.33 mm)

​8 atm/ 811 kPa

​14 atm/ 1419 kPa

8.00 mm

BD-S8040L

BD-S8060L

​​6 Fr
(2.0 mm)

​8 Fr
(2.67 mm)

​8 atm/ 811 kPa

​12 atm/ 1216 kPa

Please quote above item reference codes when placing an order
