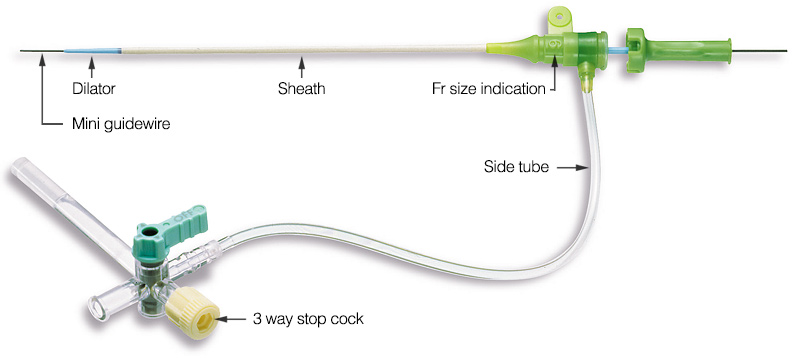

Radifocus™ Introducer II Standard Kit A

Introducer Sheath

Description

Introducers are intended to be inserted percutaneously into a vessel to facilitate the entire interventional procedure.

Characteristics

  • Total Integrated Fit (TIF) tip tapering: tapering design at the tip of the sheath and dilator to facilitate smooth penetration
  • Cross-cut haemostasis valve to avoid blood reflux and air aspiration
  • Thin radiopaque sheath with anti-kinking sleeve for easy catheter handling
  • Snap-on/click-off dilator lock prevents dilator back-out during insertion and allows one-hand unlocking
  • Wide variety of kit variations providing all elements for quick vessel access:  4-11 Fr  sheaths, 5-16 cm lengths, Surflash needle

General specifications

​Sheath length10 cm
Mini guidewirePlastic Straight and Angled
0.025" (0.64 mm) for 4 Fr, straight mini guidewire type
0.035" (0.89 mm) ​for all other items
45 cm
Entry needlePlastic IV Catheter - 18G x 2 ½" (1.2 x 64 mm),
except for 4 Fr with 45 cm straight mini guidewire: 20G x 2" (0.9 x 51 mm)
2.5 ml syringe is included
Guidewire compatibility0.025" (0.64 mm) for 4 Fr, straight mini guidewire type
0.035" (0.89 mm) for all others
PackagingTray
​A Kit content​Sheath, dilator, plastic mini guidewire and plastic IV catheter (entry needle)

Item specifications

​Inner diameter ​Mini guidewire type ​
45 cm angled45 cm straight
4 FrRS*A40K10AQRS*A40G10SQ
5 Fr​RS*A50K10AQ
5 Fr
RS*A50K10SQ
6 Fr
RS*A60K10SQ
6 FrRS*A60K10AQ

7 Fr
RS*A70K10SQ
8 Fr
​RS*A80K10SQ
9 Fr
RS*A90K10SQ
10 Fr
RS*A10K10SQ
11 Fr
RS*A11K10SQ

Please quote above item reference codes when placing an order.
