Crosstella™ OTW

PTA Balloon Dilatation Catheter

Description

Advance with high versatility​

​Crosstella OTW is a Percutaneous Transluminal Angioplasty (PTA) balloon dilatation catheter for peripheral indications. It is intended to dilate stenosis in the iliac, femoral, ilio-femoral, popliteal, infra-popliteal and renal arteries, and for the treatment of obstructive lesions of native or synthetic arteriovenous dialysis fistulae. This device is also indicated for stent post-dilatation in the peripheral vasculature.

Characteristics

  • ​Small balloon profile provides a successful crossability of the lesion1
  • Dedicated shaft balance offering an impressive pushability and trackability1
  • Wide size mix with diameters 2.0 - 6.0 mm and lengths 20 - 200 mm, allowing optimal choice of balloon for your lower limb procedures

General specifications

Maximum guidewire0.018" (0.46 mm)
Balloon folding

2-folded (Ø 2.0 - 2.5 mm)3

3-folded (Ø 2.5 - 6.0 mm)3

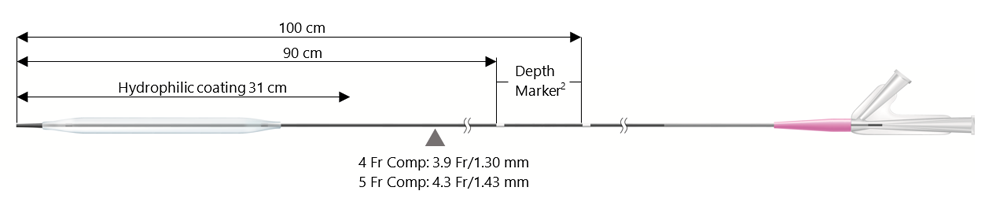

Usable shaft length90 cm, 150 cm
Nominal pressure8 atm
Rated burst pressure14 atm

Item specifications

​Catheter length: 90 cm

Balloon diameter (mm) ​Minimum sheath size (Fr) ​Balloon length (mm) ​ ​ ​ ​ ​ ​ ​
20406080100120150200
2.004BD-F20020MWBD-F20040MWBD-F20060MWBD-F20080MWBD-F20100MWBD-F20120MWBD-F20150MWBD-F20200MW
2.504BD-F25020MWBD-F25040MWBD-F25060MWBD-F25080MWBD-F25100MWBD-F25120MWBD-F25150MWBD-F25200MW
3.004BD-F30020MWBD-F30040MWBD-F30060MWBD-F30080MWBD-F30100MWBD-F30120MWBD-F30150MWBD-F30200MW
4.004BD-F40020MWBD-F40040MWBD-F40060MWBD-F40080MWBD-F40100MWBD-F40120MWBD-F40150MWBD-F40200MW
5.004BD-F50020MWBD-F50040MWBD-F50060MWBD-F50080MWBD-F50100MW---
5.005-----BD-F50120MWBD-F50150MWBD-F50200MW
6.004BD-F60020MWBD-F60040MW------
6.005--BD-F60060MWBD-F60080MWBD-F60100MWBD-F60120MWBD-F60150MWBD-F60200MW



Catheter length:150 cm

Balloon diameter (mm)​
Minimum sheath size (Fr) ​Balloon length (mm) ​ ​ ​ ​ ​ ​ ​
20406080100120150200
2.004BD-F20020LWBD-F20040LWBD-F20060LWBD-F20080LWBD-F20100LWBD-F20120LWBD-F20150LWBD-F20200LW
2.504BD-F25020LWBD-F25040LWBD-F25060LWBD-F25080LWBD-F25100LWBD-F25120LWBD-F25150LWBD-F25200LW
3.004BD-F30020LWBD-F30040LWBD-F30060LWBD-F30080LWBD-F30100LWBD-F30120LWBD-F30150LWBD-F30200LW
4.004BD-F40020LWBD-F40040LWBD-F40060LWBD-F40080LWBD-F40100LWBD-F40120LWBD-F40150LWBD-F40200LW
5.004BD-F50020LWBD-F50040LWBD-F50060LWBD-F50080LWBD-F50100LW---
5.005-----BD-F50120LWBD-F50150LWBD-F50200LW
6.004BD-F60020LWBD-F60040LW------
6.005--BD-F60060LWBD-F60080LWBD-F60100LWBD-F60120LWBD-F60150LWBD-F60200LW

References

1 Data on file. Terumo Corporation – CROSSTELLA OTW_18_Product Information_V1
​2 No markers for 90 cm length shaft
3 Depending on the balloon length
