Climber™

Guiding Catheter

Description

Which curves shape you?

Climber represents the ideal combination of dedicated hydrophilic coating, large inner lumen and passive back-up support.

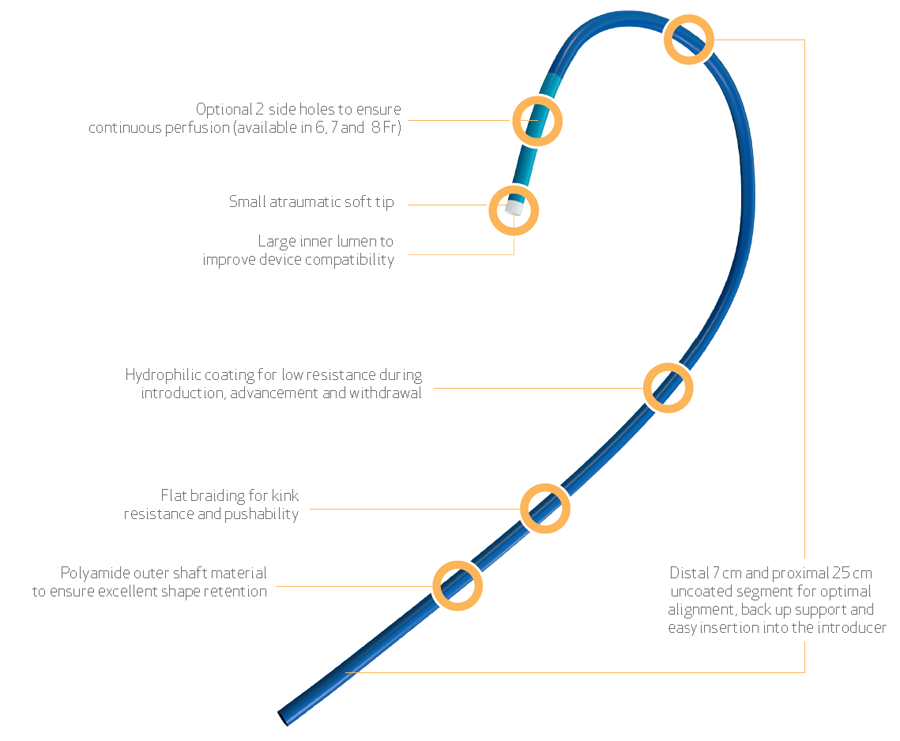

Characteristics

The many benefits of the selective hydrophilic coating

Frictionless insertion even in tortuous or calcified anatomy
Reduced risk of spasm in TRI procedures¹
Tactile, one-to-one torque control of the tip

Trust its passive back-up support

Encapsulated, high-strength, flat braiding provides high kink resistance, pushability and reliable back-up support
Polyamide outer shaft material enhances shape retention and results in minimal temperature softening during complex procedures
Distal, 7 cm uncoated section ensures good grip at the ostium and contralateral wall support

General specifications

Shaft coating	Hydrophilic coating
Shaft material	Polyamide
Braiding	Ultra thin high strength 2x2 flat wire mesh pattern
Inner diameter	5 Fr - 0.058'' (1.47 mm) 6 Fr - 0.071'' (1.80 mm) 7 Fr - 0.082'' (2.08 mm) 8 Fr - 0.091'' (2.31 mm)
Side holes	0 or 2 – available in 6, 7 and 8 Fr
Usable length	100 cm 125 cm - available for 6 Fr MP1 shape
Compatibility	Heartrail, 5 in 6 system 120 cm – GC-K5ST012NQ

Enlarge table

Item specifications

	Type	Shape code	5 Fr	6 Fr	6 Fr with 2 sideholes	7 Fr	7 Fr with 2 sideholes
Standard curves	Amplatz Left	AL 0.75	-	GC-P6AL070N	-	-	-
		AL 1	GC-P5AL100N	GC-P6AL100N	-	-	-
		AL 1.5	-	GC-P6AL150N	-	-	-
		AL 2	GC-P5AL200N	GC-P6AL200N	-	-	-
	Amplatz Right	AR 1	GC-P5AR100N	GC-P6AR100N	-	-	-
	Amplatz Right	AR 2	-	GC-P6AR200N	-	-	-
	Judkins Left	JL 3	GC-P5JL300N	GC-P6JL300N	-	-	-
		JL 3.5	GC-P5JL350N	GC-P6JL350N	-	GC-P7JL350N	-
		JL 4	GC-P5JL400N	GC-P6JL400N	-	GC-P7JL400N	-
		JL 4.5	-	GC-P6JL450N	-	-	-
		JL 5	-	GC-P6JL500N	-	-	-
	Judkins Right	JR 3.5	GC-P5JR350N	GC-P6JR350N	-	-	-
		JR 4	GC-P5JR400N	GC-P6JR400N	GC-P6JR400A	GC-P7JR400N	-
		JR 5	-	GC-P6JR500N	-	-	-
Extra backup curves	Extra backup for left coronary	EBU 3	GC-P5EB300N	GC-P6EB300N	-	-	-
		EBU 3.25	-	GC-P6EB320N	-	-	-
		EBU 3.5	GC-P5EB350N	GC-P6EB350N	GC-P6EB350A	GC-P7EB350N	GC-P7EB350A
		EBU 3.75	GC-P5EB370N	GC-P6EB370N	-	-	-
		EBU 4	GC-P5EB400N	GC-P6EB400N	GC-P6EB400A	GC-P7EB400N	-
		EBU 4.5	-	GC-P6EB450N	-	-	-
	Extra backup for right coronary	XBRCA 3.5	-	GC-P6XR350N	-	-	-
	Extra backup for right coronary	XBRCA 4	-	GC-P6XR400N	-	-	-
Other curves	Multi- purpose	MPA	GC-P5MP000N	GC-P6MP000N	-	-	-
	Multipurpose 125 cm shaft	MP1	-	GC-P6MP102N	-	-	-
	Hockey Stick	HS	-	GC-P6HS000N	-	-	-
Curves for bypass	IMA	IM	-	GC-P6IM000N	-	-	-
Curves for bypass	Bypass	RCB	-	GC-P6BP020N	-	-	-
Curves for radial access	Tiger	TIG 3	-	GC-P6TR300N	-	-	-
		TIG 3.5	GC-P5TR350N	GC-P6TR350N	-	-	-
		TIG 4	GC-P5TR400N	GC-P6TR400N	-	-	-
		TIG 4.5	-	GC-P6TR450N	-	-	-
		TIG 5	-	GC-P6TR500N	-	-	-

Enlarge table

Please quote above item reference codes when placing an order.

References

¹ Saito S., Tanaka S., Hiroe Y. et al. Usefulness of hydrophilic coating on arterial sheath introducer in transradial coronary intervention. Cath Cardio Inter. 2002;56(3):328-33
