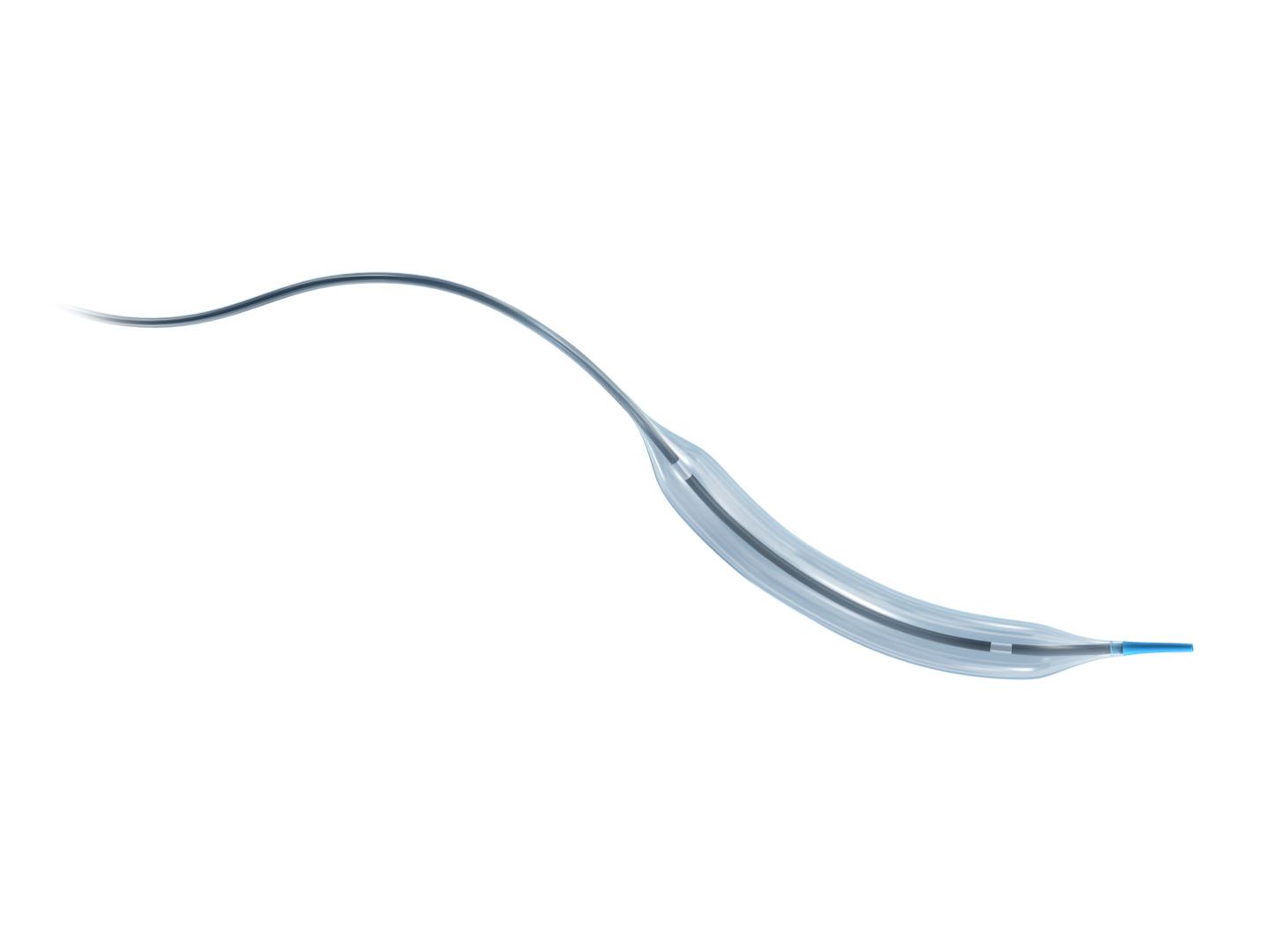

Ryujin™ Plus

PTCA Dilatation Catheter

Description

Ryujin Plus rapid exchange balloon catheter is intended for use during percutaneous transluminal coronary angioplasty (PTCA) for the purpose of improving myocardial blood flow in the localized stenotic lesion of the coronary arteries.

This device is designed for crossing routine lesions without compromising trackability.

Characteristics

  • Flexible distal shaft and hydrophilic coating for good trackability
  • Low profile enables kissing balloon technique in 6-Fr large lumen (< 0.070" / 1.80 mm) guiding catheter
  • Fixed outer and inner tube prevents accordion folds from forming at the balloon section
  • Broad selection of diameters (from 1.25 mm to 4.0 mm) and lengths (from 10 mm to 40 mm) ​

General specifications

Shaft diameter2.0 Fr (0.67 mm) Proximal
2.4 Fr (0.80 mm) Distal for 1.25 mm to 2.0 mm
2.5 Fr (0.83 mm) Distal for 2.25 mm to 3.00 mm
2.6 Fr (0.87 mm) Distal for 3.50 mm and 4.00 mm
Usable length145 cm
Nominal pressure6 atm (608 kPa)
Rated burst pressure 14 atm (1419 kPa) for 1.25 mm to 3.00 mm
12 atm (1216 kPa) for 3.50 mm and 4.00 mm
Guidewire compatibilityMaximum diameter 0.014" (0.36 mm)
Lesion entry profile0.43 mm
CoatingHydrophilic

Item specifications

Balloon diameter (mm) ​Balloon length (mm) ​ ​ ​ ​
1015203040
1.25DC-RH1210EH*DC-RH1215EH*
1.50DC-RH1515EH*DC-RH1520EH*
2.00DC-RH2015EHWDC-RH2020EHWDC-RH2030EHWDC-RH2040EHW
2.25DC-RH2210EHWDC-RH2215EHWDC-RH2220EHWDC-RH2230EHWDC-RH2240EHW
2.50DC-RH2510EHWDC-RH2515EHWDC-RH2520EHWDC-RH2530EHWDC-RH2540EHW
2.75DC-RH2710EHWDC-RH2715EHWDC-RH2720EHWDC-RH2730EHWDC-RH2740EHW
3.00DC-RH3010EHWDC-RH3015EHWDC-RH3020EHWDC-RH3030EHWDC-RH3040EHW
3.50DC-RH3510EHWDC-RH3515EHWDC-RH3520EHWDC-RH3530EHWDC-RH3540EHW
​3.75​-​DC-RH3715EHW​DC-RH3720EHW​-​-
4.00DC-RH4010EHWDC-RH4015EHWDC-RH4020EHWDC-RH4030EHWDC-RH4040EHW

* Single Radiopaque marker
Please quote above item reference codes when placing an order
