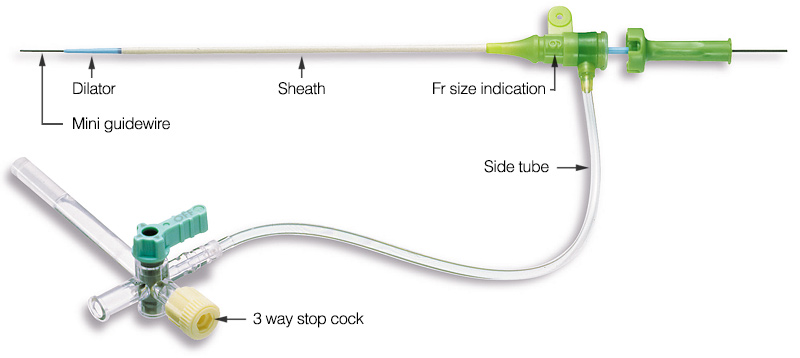

Radifocus™ Introducer II Standard Kit B

Introducer Sheath

Description

​​Introducers are intended to be inserted percutaneously into a vessel to facilitate the entire interventional procedure.

Characteristics

  • Total Integrated Fit (TIF) tip tapering: tapering design at the tip of the sheath and dilator to facilitate smooth penetration
  • Cross-cut haemostasis valve to avoid blood reflux and air aspiration
  • Thin radiopaque sheath with anti-kinking sleeve for easy catheter handling
  • Snap-on/click-off dilator lock prevents dilator back-out during insertion and allows one-hand unlocking
  • Wide variety of kit variations providing all elements for quick vessel access: 4 - 11 Fr sheaths, 7, 10 and 25 cm lengths,, Surflash needle

General specifications

​​​​​​​1st Type in tray with plastic mini guidewire

Sheath length10 cm and 25 cm
Mini guidewire
Plastic​ Straight and Angled
0.025" (0.​64 mm) or ​0.035" (0.89 mm) for 4 Fr
0.038" (0.97 mm) for all other items
45 cm for 10 cm sheath
80 cm for 25 cm sheath
Guidewire compatibility
0.025" (0.64 mm) or ​0.035" (0.89 mm) for 4 Fr
0.038" (0.97 mm) for all other items​
PackagingTray
​B Kit content​Sheath, dilator, plastic or spring mini guidewire



2nd Type in tray with spring mini guidewire

Sheath length10 cm
Mini guidewireSpring, J-type
0.035" (0.89 mm) and 0.038" (0.97 mm)
45 cm
Guidewire compatibility0.035" (0.89 mm) or 0.038" (0.97 mm)
PackagingTray
​B Kit content​Sheath, dilator, plastic or spring mini guidewire



3rd Type in pouch with spring mini guidewire

Sheath length10 cm
Mini guidewireSpring J Angled
0.035" (0.89 mm) for all items
Guidewire compatibility0.035" (0.89 mm) for 4 Fr items
0.038" (0.97 mm) for all other items
PackagingPouch
​B Kit content​Sheath, dilator, plastic or spring mini guidewire

Item specifications

​​1st Type in tray with plastic mini guidewire

Inner diameter ​ ​Guidewire
compatibility ​ ​
Sheath length 10 cm ​Sheath length 25 cm
Mini guidewire type ​ ​
45 cm angled45 cm straight80 cm angled
4 Fr
0.025" (0.64 mm)
RS*B40G10SQ
4 Fr0.035" (0.89 mm)
RS*B40K10AQRS*B40K10SQ
5 Fr0.038" (0.97 mm)RS*B50N10AQRS*B50N10SQRS*B50N25AQ
6 Fr0.038" (0.97 mm)RS*B60N10SQRS*B60N25AQ
7 Fr0.038" (0.97 mm)RS*B70N10SQRS*B70N25AQ
8 Fr0.038" (0.97 mm)RS*B80N10SQRS*B80N25AQ
9 Fr
0.038" (0.97 mm)RS*B90N10SQRS*B90N25AQ​
11 Fr0.038" (0.97 mm)RS*B11N10SQ

Please quote above item reference codes when placing an order.

2nd Type in tray with spring mini guidewire

Inner diameter ​Guidewire compatibility ​
0.035" (0.89 mm)0.038" (0.97 mm)
4 FrRS*B40K10MQ
5 FrRS*B50K10MQRS*B50N10MQ
6 FrRS*B60K10MQRS*B60N10MQ
7 FrRS*B70K10MQRS*B70N10MQ
8 FrRS*B80K10MQRS*B80N10MQ
9 FrRS*B90K10MQRS*B90N10MQ
10 FrRS*B10K10MQRS*B10N10MQ
11 FrRS*B11K10MQRS*B11N10MQ

Please quote above item reference codes when placing an order.

3rd Type in pouch with spring mini guidewire

Inner diameter
Item reference
4 FrRS*B40K10MR
5 FrRS*B50N10MRD
6 FrRS*B60N10MRD
7 FrRS*B70N10MRD
8 FrRS*B80N10MRD
9 FrRS*B90N10MRD
10 FrRS*B10N10MRD
11 FrRS*B11N10MRD

Please quote above item reference codes when placing an order.
