Empowering MSK Embolization: Discover Our Solutions
3
neutrals-100

Musculoskeletal embolotherapy (MSK‑ET) is a minimally invasive treatment that reduces chronic pain and inflammation by selectively embolizing abnormal neovessels¹,². Building on Dr. Yuji Okuno’s pioneering work³, the field has rapidly expanded over the past decade, with growing clinical indications and new embolic technologies4.​
neutrals-100
Scope and Evidence**
4
neutrals-100

MSK-ET addresses hypervascularity linked to osteoarthritis, overuse or sports-related injuries1,2,4,5​.

Clinical studies of genicular artery embolization (GAE) for knee osteoarthritis show meaningful improvements in pain and function, while randomized controlled trials, as the gold standard of evidence, play an essential role in further defining and refining the therapy.6-11​​

Other treatment targets may include:

  • Shoulder (e.g. adhesive capsulitis)12
  • Hip (e.g. greater trochanteric pain syndrome)13​
  • Foot and ankle (e.g. plantar fasciitis, Achilles tendinopathy)14-15​
  • Elbow (e.g.  lateral epicondylitis a.k.a tennis elbow)16​
  • Other (e.g. temporomandibular joint osteoarthritis, hand/wrist osteoarthritis, patellar tendinopathy, myofascial pain syndromes)17-20​
neutrals-100
Key Success Factors
4
neutrals-100
Patient Selection
6
neutrals-100
Ideal candidates have chronic pain unresponsive to conservative therapy and imaging evidence of abnormal hypervascularity correlating with symptoms. ​
neutrals-100
Catheterization
6
neutrals-100
Technical success depends on precise navigation into small, tortuous branches supplying the pain generator. This requires microcatheters of exceptional trackability, with versatile tip shapes for selective access to challenging branches. Combined with a stable guiding system, this enables accurate positioning and controlled embolic delivery, minimizing the risk of non-target embolization.​
neutrals-100
Embolic Agents​
6
neutrals-100
Protocols may use either temporary or permanent embolics, with optimal options currently under evaluation. The choice ultimately depends on operator discretion.
neutrals-100
Learn more about our solutions for MSK embolization
4
neutrals-100
Progreat Lambda™
  • Ultra selective procedure with 1.7Fr and 1.9Fr options21

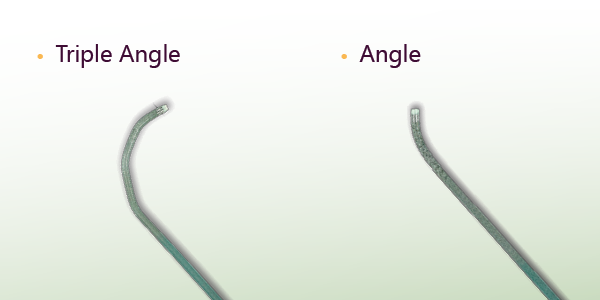

  • Greater vessel engagement with unique Triple Angle21
Learn more
Learn more
/content/terumo-europe-ia/en/interventional-systems/products/product-type/catheters/progreat-lambda-micro-catheter-system
button tis-primary
grid-texts-50
text-vertical-top
image-media-type
default-aspect-ratio
media-left
false

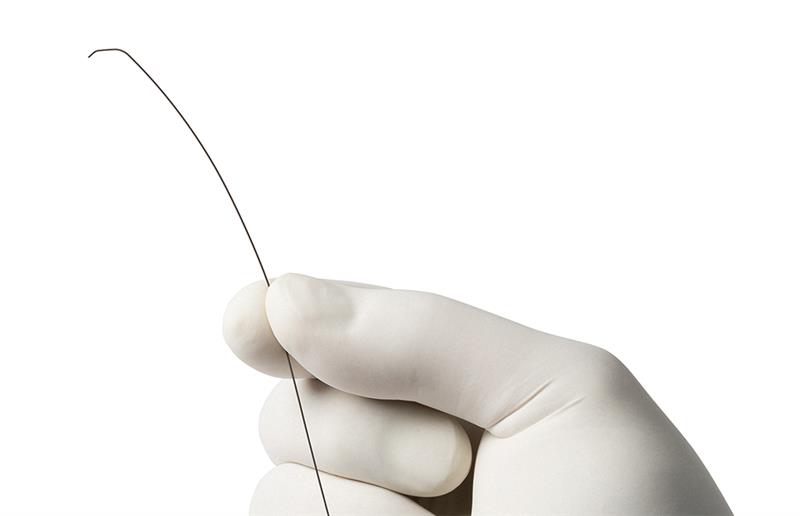

Radifocus™ Guide Wire GT With Gold Coil
  • Consistent performance with excellent shape memory
  • Atraumatic procedure with the tapered flexible tip
Learn more
Learn more
/content/terumo-europe-ia/en/interventional-systems/products/product-type/guidewires/radifocus-guide-wire-gt-with-gold-coil-guide-wire
button tis-primary
button tis-primary
grid-texts-50
text-vertical-top
image-media-type
default-aspect-ratio
media-left
false
​Angiographic Catheters​

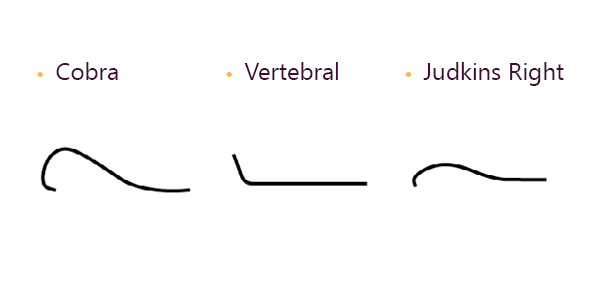

Optimize Vessel Engagement with the Wide Range of Shapes
Radifocus™ Glidecath™ Angiographic Catheter
/content/terumo-europe-ia/en/interventional-systems/products/product-type/catheters/radifocus-glidecath-angiographic-catheter
button tis-primary
Radifocus™ Optitorque™ Angiographic catheter
/content/terumo-europe-ia/en/interventional-systems/products/product-type/catheters/radifocus-optitorque-angiographic-catheter
button tis-primary
grid-texts-50
text-vertical-top
image-media-type
default-aspect-ratio
media-left
false
Angio-Seal™ VIP Vascular Closure Device

To allow patients to ambulate safely as soon as possible after sheath removal

  • Indicated to use for common femoral artery with lumen diameter >4mm
  • Safe to use in antegrade and retrograde femoral punctures22
Learn more
/content/terumo-europe-ia/en/interventional-systems/products/product-type/closure-devices/angio-seal-vip-vascular-closure-device
button tis-primary
button tis-primary
grid-texts-50
text-vertical-top
image-media-type
default-aspect-ratio
media-left
false
Learn more about our Access & Closure Management
4
neutrals-100
1
variation-1-card
nothing

Radial Solutions

For 30 years, we have brought radial access to the forefront of clinical practice. Discover how our solutions can contribute to the success of your radial practice.
Learn more
/content/terumo-europe-ia/en/interventional-systems/solutions/radial-solutions
button
variation-1-card
nothing

Femoral Solutions

Maintaining femoral proficiency is critical as not all interventions can be done radially. Discover how our solutions can support your femoral practice.
Learn more
/content/terumo-europe-ia/en/interventional-systems/solutions/femoral-solutions
button
Explore resources designed to deepen your understanding of MSK embolization. From clinical insights to practical techniques, these materials will help you stay informed and confident in delivering advanced patient care.​
Recorded Lecture on MSK
https://www.terumolearningedge.eu/pages/library-ioe
button tis-primary
grid-texts-50
text-vertical-center
image-media-type
default-aspect-ratio
media-left
Discover in-depth case reports on MSK embolization, authored by leading physicians, showcasing real-world application, clinical reasoning, and outcomes that advance patient care.

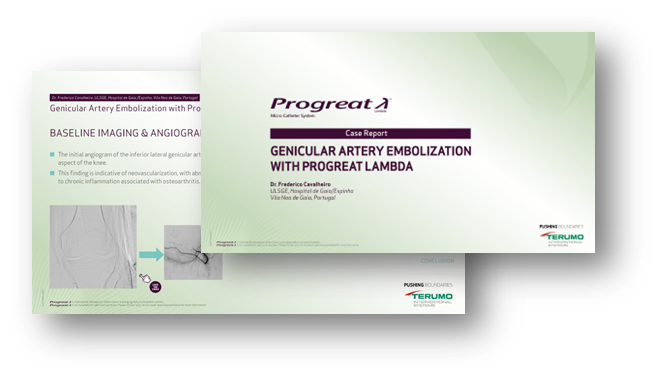

See Case Report about Genicular Artery Embolization
/content/dam/terumo-dam/internet-cms/en-emea/tis/solution-assets/MSK/Case%20Report%20Genicular%20Artery%20Embolization%20with%20Progreat%20Lambda.pdf
button tis-primary
See Case Report about Adhesive Capsulitis Embolization
/content/dam/terumo-dam/internet-cms/en-emea/tis/solution-assets/MSK/Case%20report_Adhesive%20capsulitis%20embolization%20with%20Progreat%20Lamba_MSK_Fernandez.pdf
grid-texts-50
text-vertical-center
image-media-type
default-aspect-ratio
media-left

References

* IFU
** as of 2026 January

Veloso Gomes et al Cardiovasc Intervent Radiol 2023 (Pooled analysis)​
text
https://doi.org/10.1007/s00270-023-03362-9
Ashraf N., et al._Safety and Efficacy of Genicular Artery Embolization for Knee Joint Osteoarthritis Associated Pain: A Systematic Review_J Endovasc Ther_2025;15266028251326770.
de Baere T et al. Cancers (Basel) 2020;12:E3405 (PARIS registry)​​
text
https://www.mdpi.com/2072-6694/12/11/3405
Allaw S., et al._Transarterial Embolization for Refractory Adhesive Capsulitis and Related Tendinopathies: A Systematic Review and Meta Analysis_J Vasc Interv Radiol_2025;107896
Lucatelli et al: Cardiovasc Intervent Radiol https://doi.org/10.1007/s00270-024-03779-w
text
https://pubmed.ncbi.nlm.nih.gov/38955814/
Okuno Y., et al._Transcatheter arterial embolization using imipenem/cilastatin sodium for tendinopathy and enthesopathy refractory to nonsurgical management_J Vasc Interv Radiol_2013;24:787–792
Reig et al - BCLC strategy for prognosis prediction and treatment recommendation: The 2022 update – journal of Hepatology VOLUME 76, ISSUE 3, P681-693, MARCH 202​2
text
https://pubmed.ncbi.nlm.nih.gov/34801630/
van Zadelhoff TA., et al._Comparative Safety of 3 Temporary Embolic Agents in Transcatheter Arterial Embolization for Degenerative, Inflammatory, and Overuse Joint Disorders_J Vasc Interv Radiol_2025;36:979–987.e1
text
Okuno Y., et al._Clinical Outcomes of Transcatheter Arterial Embolization for Adhesive Capsulitis Resistant to Conservative Treatment_J Vasc Interv Radiol_2017;28:161–167.e1
text
Callese T., et al._Early intervention in knee osteoarthritis with genicular artery embolization is associated with improved clinical outcomes_Eur Radiol_2025;35:7617–7626
text
Cusumano LR., et al._Genicular Artery Embolization for Treatment of Symptomatic Knee Osteoarthritis: 2 Year Outcomes from a Prospective IDE Trial_J Vasc Interv Radiol_2024;35:1768–1775
text
Fleckenstein FN., et al._Genicular Artery Embolization for the Treatment of Symptomatic Knee Osteoarthritis_Radiology_2025;316:e243648
text
Bagla S., et al._Multicenter Randomized Sham Controlled Study of Genicular Artery Embolization for Knee Pain Secondary to Osteoarthritis_J Vasc Interv Radiol_2022;33:2–10.e2
text
Landers S., et al._Genicular artery embolization for early stage knee osteoarthritis: results from a triple blind single centre randomized controlled trial_Bone Jt Open_2023;4:158–167
text
van Zadelhoff TA., et al._Genicular artery embolisation versus sham embolisation for symptomatic osteoarthritis of the knee: a randomised controlled trial_BMJ Open_2024;14:e087047
text
Fernández  Martínez A., et al._Mid Term Results of Transcatheter Arterial Embolization for Adhesive Capsulitis Resistant to Conservative Treatment_Cardiovasc Intervent Radiol_2025;48:1759–1768
text
Giordani CB., et al._Arterial Embolization of Joint Synovitis: The Latino Registry. Midterm Follow Up of the Latino Hip Cohort for Greater Trochanteric Pain Syndrome_Cardiovasc Intervent Radiol_2025;48:538–542
text
Sugihara E., et al._A Retrospective, Multicentric Evaluation of the Safety and Efficacy of Transcatheter Arterial Micro Embolization for Refractory Achilles Tendinopathy_Cardiovasc Intervent Radiol_2025;48:1725–1734
text
Sasaki T., et al._Clinical results of ultrasound guided intra arterial embolization targeting abnormal neovessels for plantar fasciitis: 66 cases with up to 4 years of follow up_Foot Ankle Surg_2025;31:105–110
text
Iwamoto W., et al._Transcatheter arterial embolization of abnormal vessels as a treatment for lateral epicondylitis refractory to conservative treatment: a pilot study with a 2 year follow up_J Shoulder Elbow Surg_2017;26:1335–1341
text
Fleckenstein FN., et al._Transcatheter Arterial Embolization as a Treatment for Chronic Pain due to Osteoarthritis_Cardiovasc Intervent Radiol_2025;48(5):687–693
text
Kubo T., et al._Intra Arterial Injection of Temporary Embolic Material Through a Needle Inserted into the Radial or Ulnar Artery for Distal and Proximal Interphalangeal Joint Osteoarthritis: A Retrospective Study of 92 Patients_Cardiovasc Intervent Radiol_2023;46:1375–1382
Inui S et al. Orthop J Sports Med (2025);13:23259671251337093
text
Inui S., et al._Transcatheter Arterial Embolization of Abnormal Neovessels for Patellar Tendinopathy: A Safety Evaluation: A Proof of Concept Study_Orthop J Sports Med_2025;13(6)
text
Huang YH., et al._Transarterial Embolization for Refractory Non Cervical Origin Interscapular Pain Following Ultrasound Guided Injection: A Retrospective Feasibility Study_Diagnostics (Basel)_2025;15:2496
text
Bench testing performed by TERUMO CLINICAL SUPPLY CO., LTD.. Data on file (2020-NMC-020, 2020-NMC-021, 2020-NMC-022, 2020-NMC-027, 2020-NMC-030). Bench test result may not necessarily be indicative of clinical performance. Read and follow the manufacturer’s IFU to be used with this product.
text
Chaudhuri A., et al._Percutaneous Vascular Closure Using an Anchored Collagen Plug Provides Effective Haemostasis Following Both Antegrade and Retrograde Femoral Arterial Punctures_Eur J Vasc Endovasc Surg_2014;48(2):220–225
