*These deflation guidelines are based on best practices from experienced distal radial users. They are supplied for illustration and information purposes only and are in no way, shape or form intended or constructed to replace the “Instruction for Use” which should be consulted every time and to which the guidelines are just an addition. They are not to be interpreted as a medical advice either: the TR Band™ Distal should be applied or removed at the physician’s sole discretion.

For more information, please refer to TR Band™ Distal “Instruction for use”.

Application and inflation​

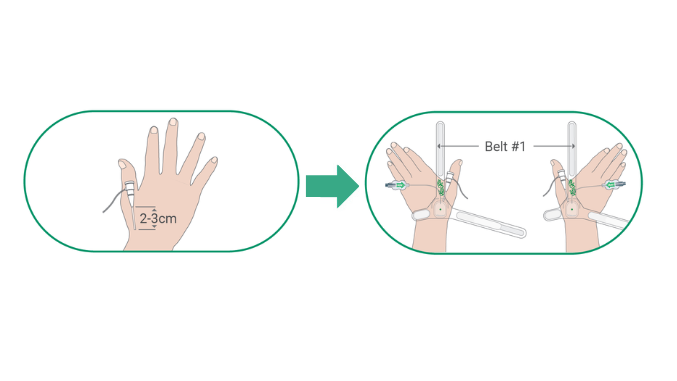

​Withdraw the introducer sheath by 2 to 3 cm.

• Ensure the puncture site is clean & dry.

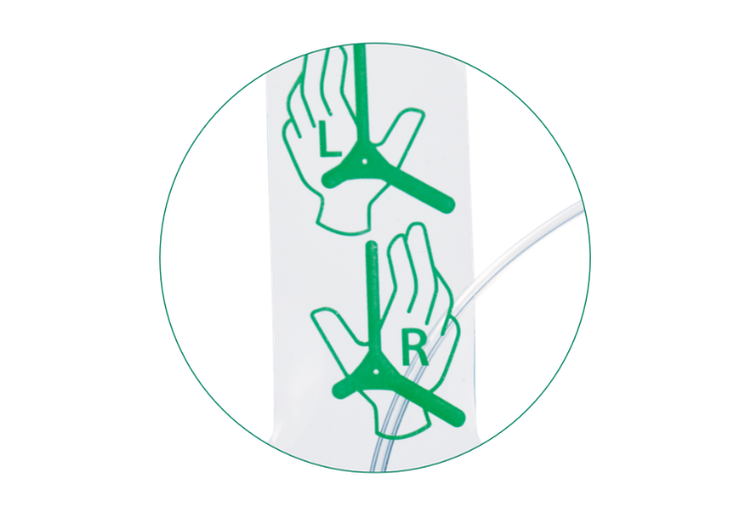

Place the compression balloon against the skin then place belt #1 with the hand icons between the index finger and the thumb.​

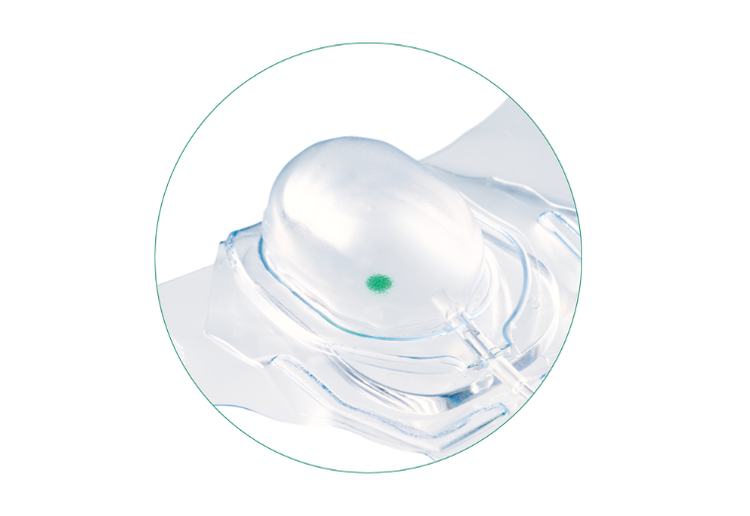

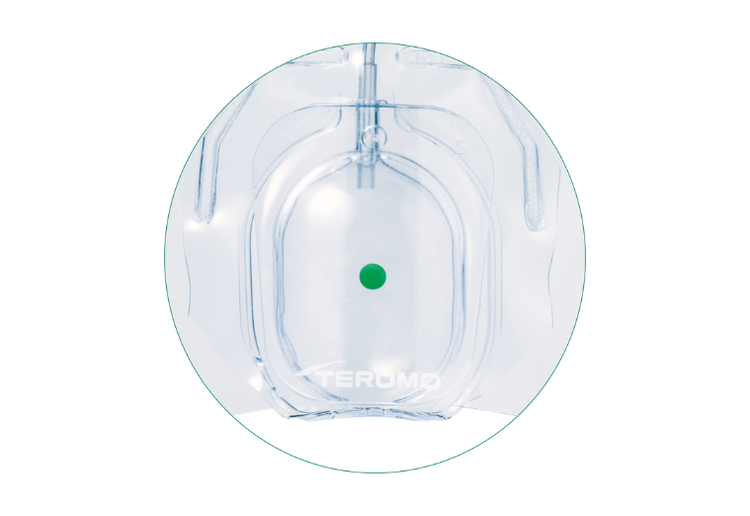

• Align the green marker on the compression balloon with the vascular puncture site.​

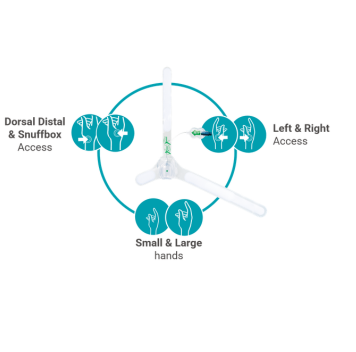

• The same approach applies to both the left and right hand.

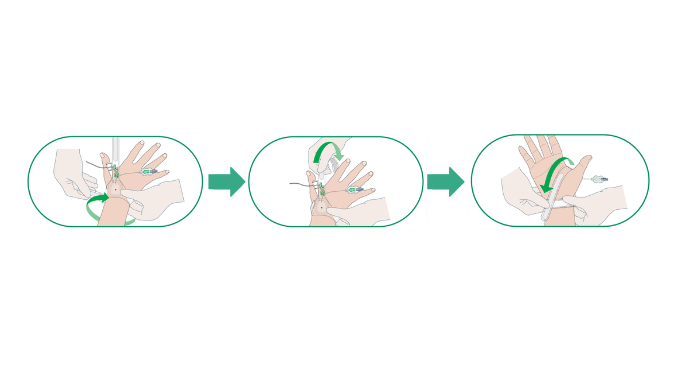

Wrap the two other belts around the hand, and keep them ​secure with the adjustable fastener.​

Pass belt #1 through the thumb and the index finger.​ Keep the air injection port on the side.​​

Secure belt #1 tightly with the adjustable fastener.​

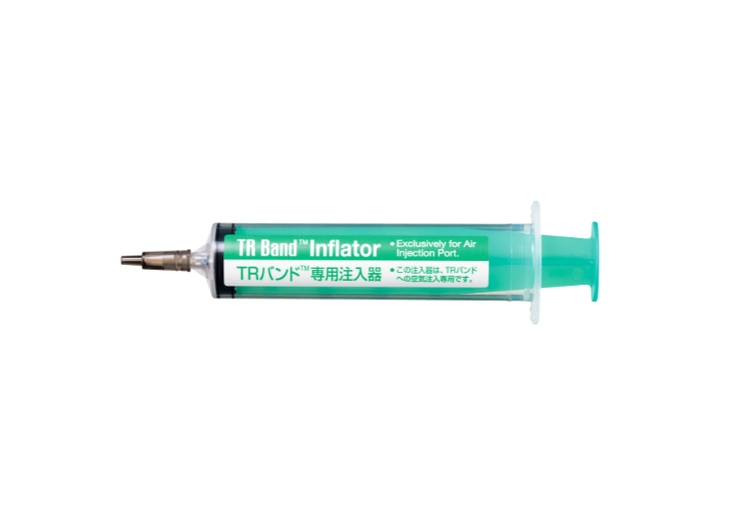

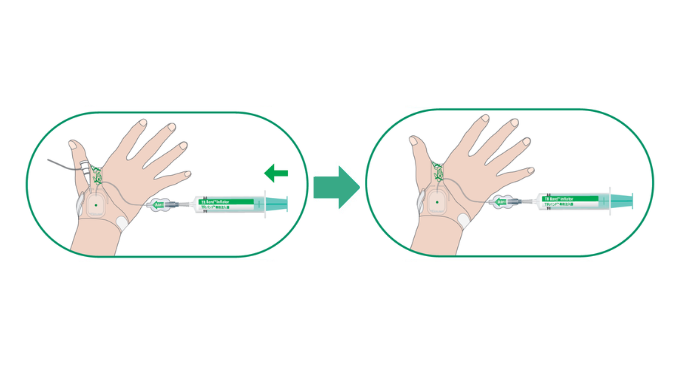

Inject up to 14 ml of air from the inflator via the air injection port.​

​Withdraw the introducer sheath and adjust the air volume in case of bleeding​. Keep the puncture site dry, using gauze to absorb any oozing or bleeding​

Deflation & Removal​

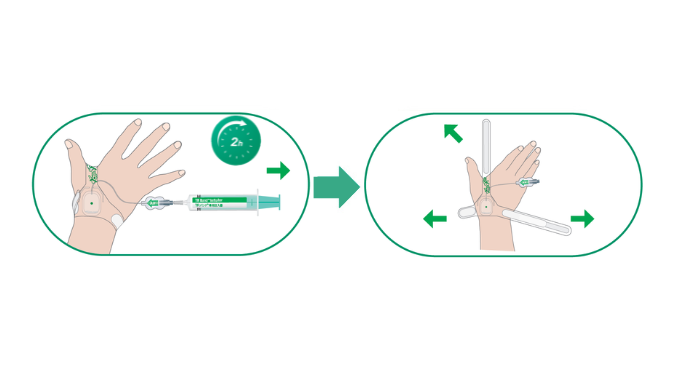

Deflate TR Band™ completely after 2 hours.​

• Removal protocols should be consistent with needs of the provider(s) and patient.​
• Air injection volume and compression time may differ according to the patient’s condition, heparin volume, and the size of the puncture site.​
• Check the puncture site frequently and adjust accordingly. If bleeding occurs, inject more air to restore hemostasis and repeat deflation after 30 minutes.​

​Remove TR Band™ Distal and apply sterile dressing over the puncture site.​
