HCC MW ablation with 2 antennas using navigation system
2
neutrals-100
Physician: Hans Martin Gissler, MD
Location: Kantonsspital Aarau, Dept. of Radiology Aarau, Switzerland
Featured product: TATO Thermal Ablation Treatments for Oncology
neutrals-100
true
ClinicalCase
Clinical Case
Procedure
Procedure
Follow-upConclusion
Follow-up/Conclusion
Clinical Case
3
neutrals-100

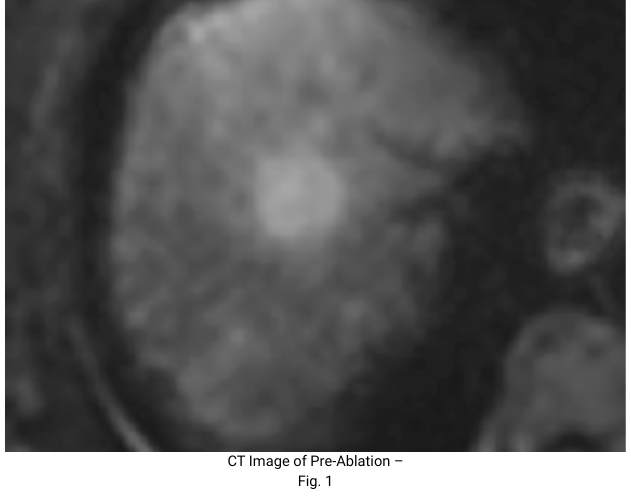

In a female patient 68 yrs. old with liver cirrhosis Child A, MRI was suspicious for hepatocellular carcinoma segment VIII of 2 cm of diameter in the liver dome (Fig. 1). Tumor board transferred her to ablation.
grid-texts-60
image-media-type
Procedure
3
neutrals-100

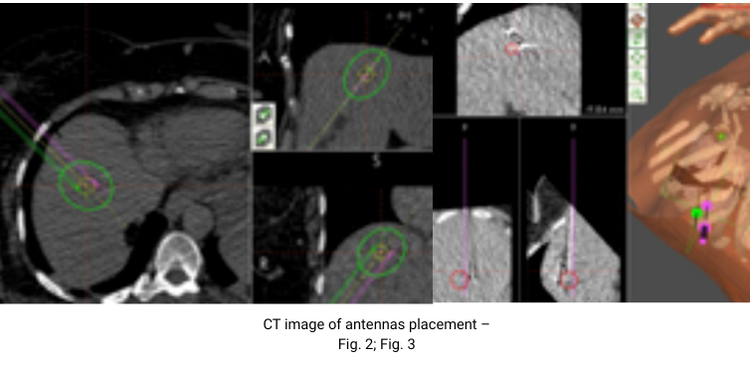

Under general anesthesia in prone position, computer-aided placement of MWA antennas was planned after biopsy (CAScinationTm, Fig. 2), diagnosed later as high differentiated hepatocellular carcinoma. Two TATOpro 14G × 15 cm antennas have been put in place and 2 × 45 Watt have been applied over 20 minutes (Fig. 3).
grid-texts-60
image-media-type
Follow-up/Conclusion
3
neutrals-100

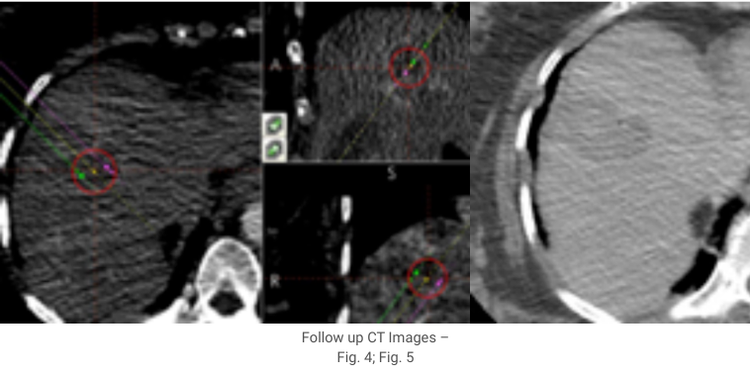

Post-ablation control verified the ablated area (Fig. 4, Fig. 5). No recurrence occurred after 12 months.
grid-texts-60
image-media-type
Products Used
3
neutrals-100
Two TATOpro 14G × 15 cm antennas.
