ROCsafe® FX

Modular Perfusion Circuit

Description

​ROCsafe® FX - For Best Practices in Blood Management

Modular Perfusion Circuit

ROCsafeFX is a modular system which can be easily adapted to meet a variety of clinical protocols. The innovative design of the disposable holder allows you to choose among three different types of arterial filters. The basic system is ideal for routine CABG. Using accessory packs, ROCsafeFX can be adapted for all types of on-pump cardiac procedures.



Increased performance with reduced prime volume



● Superb air removal capacity
● Component flexibility
● Excellent biocompatibility

Characteristics

  • ​High performance
  • Proven air removal capacity
  • Suitable for all types of on-pump procedures
  • Reduced surface area

Accessory pack with flexible reservoir

  • Can be connected to ROCsafe® FX during operation using quick connectors
  • For storage and de-airing of large amounts of vented blood
  • Intended to be used during complex procedures like valve replacements or combined cases

Accessory pack with hardshell reservoir

  • Can be connected to ROCsafe® FX during operation using quick connectors
  • Converts ROCsafe® FX to an open circuit
  • ​Intended to be used in emergency situations

General specifications

​Oxygentor
​ROCsafe® FX15
​ROCsafe® FX25
​Type
​Capiox® FX15
​Capiox® FX25
​Priming volume
​144 mL
​260 mL
​Membrane surface area
 Approx.​1,5 m²
Approx. ​2,5 m²
​Fiber material
Microporous polypropylene
​Pore size of integrated arterial filter
​32 µm
​Surface area of integrated arterial filter
​360 cm²
​600 cm²
​Material of integrated arterial filter
​Polyester screen type
​Bubble trap​
​Type
​Capiox BT15X

​Priming volume
​150 mL
​Filter pore size
 170 ​µm
​Filter material
​Polyester

​Centrifugal pump head
​Type
​Sarns 164275X
​Sarns 164275X
​Priming volume
​48 mL

​Total circuit priming volume (excl. table line)
​462 mL
​578 mL


Xcoating-Logo-TM_CMYK.pngXcoating™ Surface Coating, Terumo Corporation's biocompatible amphiphilic polymer surface coating, is a standard feature on the ROCsafe® Perfusion Circuit.

Item specifications

ROCsafe® FX Modular Perfusion Circuit

Description
Catalog # Units/Case
ROCsafe® FX Modular Perfusion Circuit with Capiox FX15 Oxygenator
​CX-ROCFX15
​1
ROCsafeFX® Modular Perfusion Circuit with Capiox FX25 Oxygenator​CX-ROCFX25​
​1
Flexible Reservoir Accessory Pack​CX-ROCA

​10

Hardshell Venous Reservoir Accessory Pack​CX-ROCB​
​1
​​Sucker Accessory Pack
​CX-ROCC​
​10

​Table set for ROCsafe® FX Modular Perfusion Circuit
​CX-ROCG
​8

Holders for ROCsafe® FX


​Description​Catalog #​Units/Case

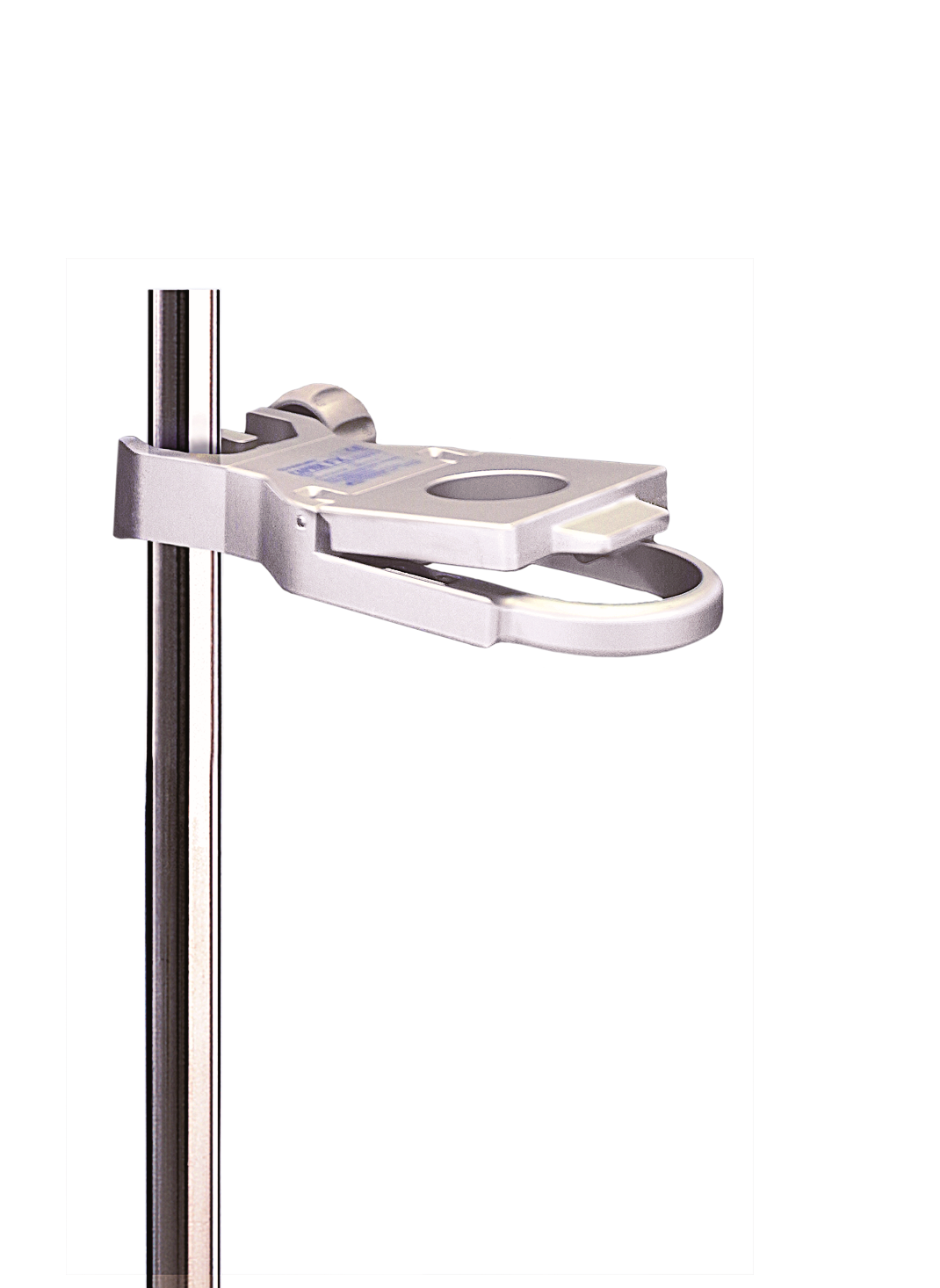

​Holder for ROCsafe® modular perfusion circuit without hardshell reservoir
​XX*CXH25F​1
Holder for accessory pack with hardshell reservoir CX-ROCB (long angled arm)​
XX*CXH18R
​1
