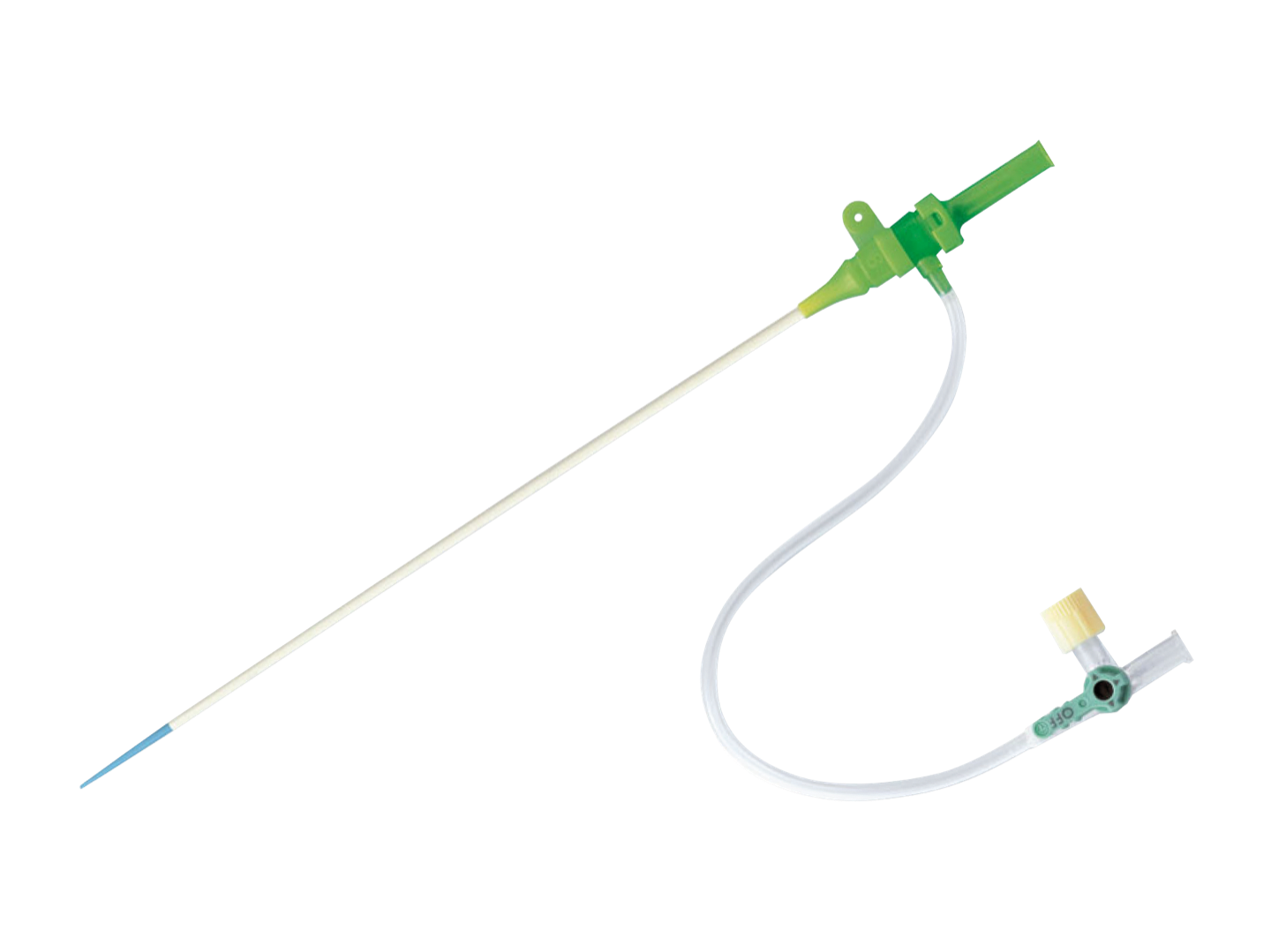

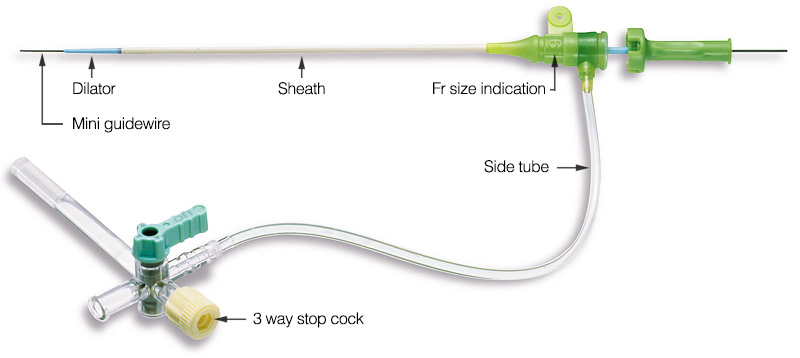

Radifocus™ Introducer II Transradial Kit M Coat™ A

Introducer Sheath

Description

Introducers are intended to be inserted percutaneously into a vessel to facilitate the entire interventional procedure.

Being a pioneer and a leader in vascular access, Terumo’s goal is to offer complete solutions for transradial interventions with devices that minimize patient stress and optimize outcomes.

Characteristics

Easy insertion and removal with proprietary Terumo M Coat™ hydrophilic
Total Integrated Fit (TIF) tip tapering: tapering design at the tip of the sheath and dilator to facilitate smooth penetration
Cross-cut hemostasis valve: to avoid blood reflux and air aspiration
Thin radiopaque sheath with anti-kinking sleeve: for easy catheter handling
Snap-on / click-off dilator lock: prevents dilator back-out during insertion and allows one-hand unlocking

General specifications

Sheath length	10 cm, 16 cm and 25 cm
Sheath coating	Hydrophilic M Coat™
Mini guidewire	Plastic Straight 0.025" (0.64 mm) 45 cm for 10 cm sheath and 80 cm for 16 cm and 25 cm sheath
Entry needle	Plastic IV Catheter - 20G x 1¼" (0.9 x 32 mm), 2.5 ml syringe is included
Guidewire compatibility	0.025" (0.64 mm)
Packaging	Tray
Dilator internal tip diameter	Equals to mini guidewire external diameter
A Kit content	Sheath, dilator, plastic mini guidewire and plastic IV catheter

Enlarge table

Item specifications

Inner diameter	Sheath length
Inner diameter	10 cm	16 cm	25 cm
5 Fr	RM*AF5J10SQW	RM*AF5J16SQW	RM*AF5J25SQW
5 Fr	RM*AF5G10HQW	-	-
5 Fr	RM*BF5F10PQ	-	-
6 Fr	RM*BF6J10PQ	-	-
6 Fr	RM*AF6G10HQW	-	-
6 Fr	RM*CF6J10NQ	-	-
6 Fr	RM*AF6J10SQW	RM*AF6J16SQW	RM*AF6J25SQW

Enlarge table

Please quote above item reference codes when placing an order
