Radifocus™ Introducer II Radiopaque Marker Kit B

Introducer Sheath

Description

Introducers are intended to be inserted percutaneously into a vessel to facilitate the entire interventional procedure.


A platinum/iridium band incorporated into the introducer sheath shows the precise location of the distal tip for accurate positioning.

Characteristics

  • Platinum/iridium band incorporated into the distal tip of the sheath for precise positioning
  • Smooth surface over the radiopaque marker to reduce friction
  • Terumo cross-cut valve maintains uncompromised haemostasis to avoid bleeding and air aspiration
  • Thin radiopaque sheath with anti-kinking sleeve for easy catheter handling
  • Snap-on/click-off dilator to prevent dilator back-out during insertion and allows one-hand unlocking

General specifications

Sheath length6 cm and 10 cm
Spring mini guidewire0.035" (0.89 mm) for 4 Fr and 0.038" (0.97 mm) for all others
Guidewire compatibility0.035" (0.89 mm) for 4 Fr and 0.038" (0.97 mm) for all others
PackagingPouch

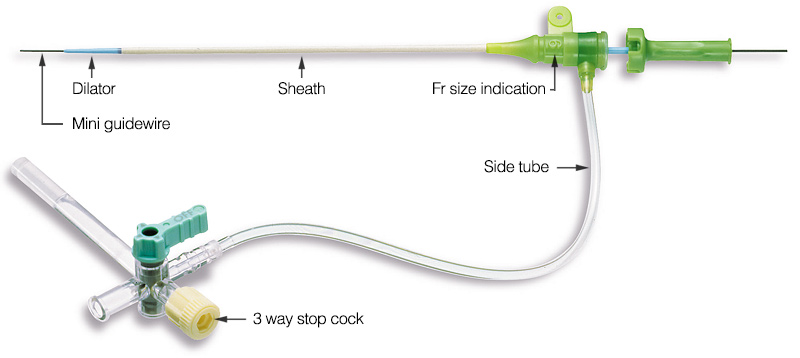

​B Kit content​Sheath, dilator, spring mini guidewire

Item specifications

Inner diameter ​Sheath length ​
6 cm10 cm
4 FrRB*B4SK06MCRB*B4SK10MC
5 FrRB*B5SN06MCRB*B5SN10MC
6 FrRB*B6SN06MCRB*B6SN10MC
7 FrRB*B7SN06MCRB*B7SN10MC
8 Fr
RB*B8SN10MC
9 FrRB*B9SN06MCRB*B9SN10MC

Please quote above item reference codes when placing an order
