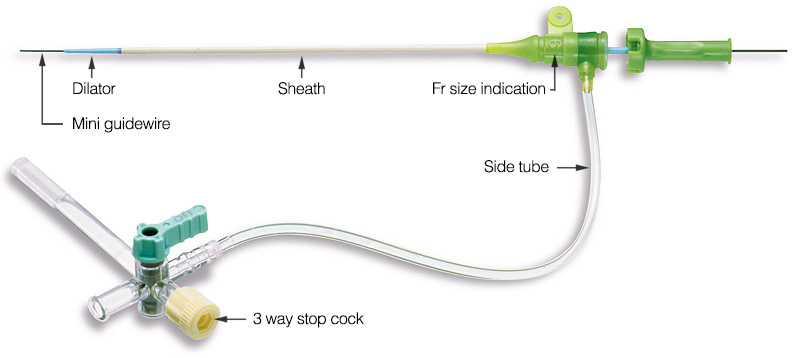

Radifocus™ Introducer II Pediatric Kit A

Introducer Sheath

Description

Small-size introducer sheaths for easy and non-traumatic vessel insertion, facilitating pediatric interventional procedures.

Characteristics

  • Total Integrated Fit (TIF) tip tapering: optimal tapering design at the tip of the sheath and dilator for smooth penetration
  • Cross-cut haemostasis valve effectively avoids blood reflux and air aspiration
  • Smooth sheath-to-dilator transition and tapered dilator reduce penetration resistance
  • Thin radiopaque sheath with anti-kinking sleeve for easy catheter handling
  • Snap-on/click-off dilator lock prevents dilator back-out during insertion and allows one-hand unlocking
  • Nitinol super elastic mini guidewire enables smooth insertion and removal

General specifications

Sheath length5 cm and 7 cm
Mini guidewirePlastic Straight
0.025" (0.64 mm)
45 cm
Guidewire compatibility0.025" (0.64 mm)
Entry needlePlastic IV catheter - 20G x 2" (0.9 x 51 mm), 2.5 ml syringe is included
PackagingTray
​A Kit content​Sheath, dilator, plastic mini guidewire and plastic IV catheter (entry needle)

Item specifications

Inner diameter ​Sheath length ​
5 cm7 cm
4 FrRS*A40G05SQ
RS*A40G07SQ
5 FrRS*A50G05SQRS*A50G07SQ
6 FrRS*A60G05SQRS*A60G07SQ

Please quote above item reference codes when placing an order
