Radifocus™

Angiographic Catheter

Description

Radifocus Angiographic Catheter is a 5 Fr angiographic catheter intended for use in angiographic procedures. It delivers radiopaque media and therapeutic agents to selected sites in the vascular system. It is also used to lead a guidewire or a catheter into the target site.

Characteristics

Smooth navigation thanks to the polyamide surface, rounded tip and one-piece body structure
Soft and atraumatic catheter with good torque control due to its internal metallic mesh braid
Smooth, radiopaque surface to prevent thrombus formation
High pressure resistance (up to 1,000 psi/6.895 kPa)
Various tip shapes available

General specifications

Outer diameter	5 Fr / 1.70 mm
Inner diameter	0.043" / 1.10 mm
Maximum guidewire size	0.038" / 0.97 mm
Pressure limit	1000 psi / 6.895 kPa
Catheter material	Polyamide
Mesh braid material	Stainless steel
Units per box	5

Enlarge table

Item specifications

Product type	Catheter length	Distal curve	Side holes	Item reference
Femoral - Ventricular Shape	65 cm	-	6	RF-FG1500GM

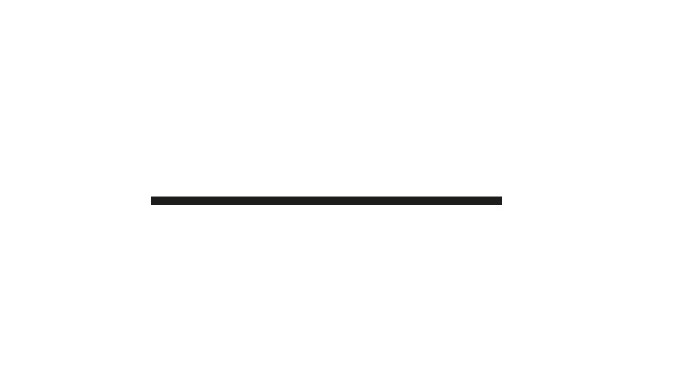

	65 cm	Straight	6	RF-FK1500GM
	80 cm	-	6	RF-FG15008M
	80 cm	Straight	6	RF*FK15008M
	80 cm	Straight	6	RF-FK15008M
	110 cm	-	6	RF-FG15011M

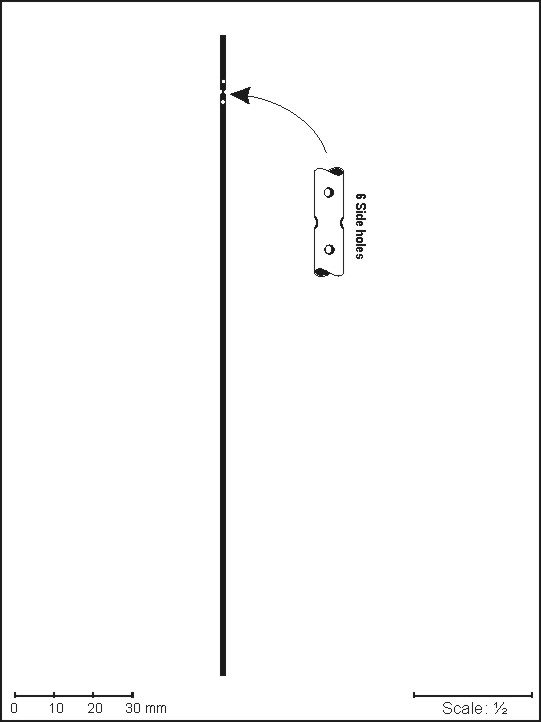

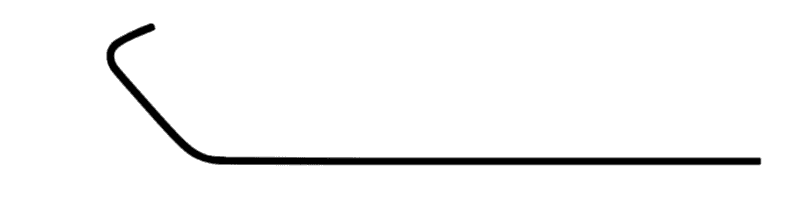

Renal and Visceral shape	80 cm	Straight 8 cm tapered	0	RF*DI15008M

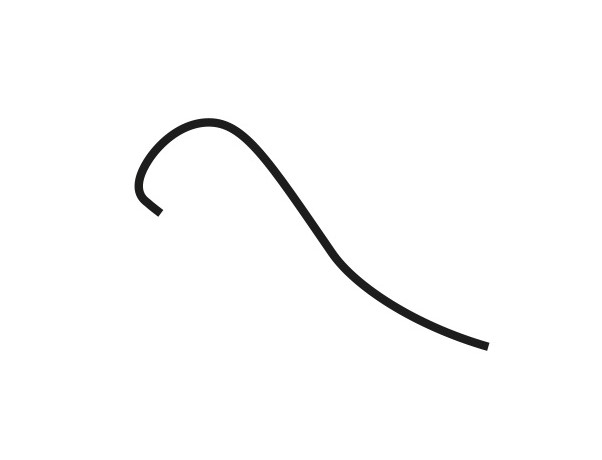

	65 cm	Cobra Small	2	RF-DB1500GM
	65 cm	Cobra Small	0	RF-DB4500GM
	80 cm	Cobra Small	0	RF*DB45008M
	80 cm	Cobra Small	0	RF-DB45008M

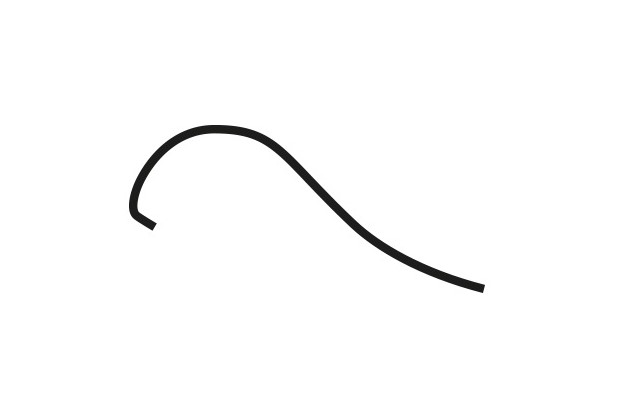

	65 cm	Cobra Middle	2	RF-DB2500GM
	65 cm	Cobra Middle	0	RF-DB5500GM
	65 cm	Cobra Middle	2	RF*DB2500GM
	80 cm	Cobra Middle	0	RF-DB55008M
	80 cm	Cobra Middle	0	RF*DB55008M

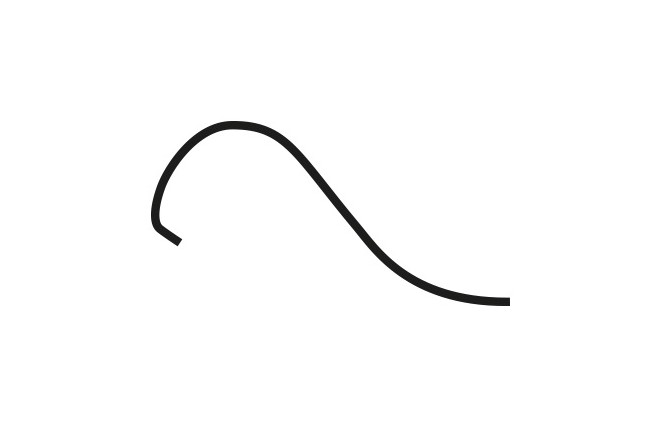

	65 cm	Cobra Large	2	RF-DB3500GM
	65 cm	Cobra Large	0	RF-DB6500GM
	80 cm	Cobra Large	0	RF-DB65008M
	80 cm	Cobra Large	0	RF*DB65008M

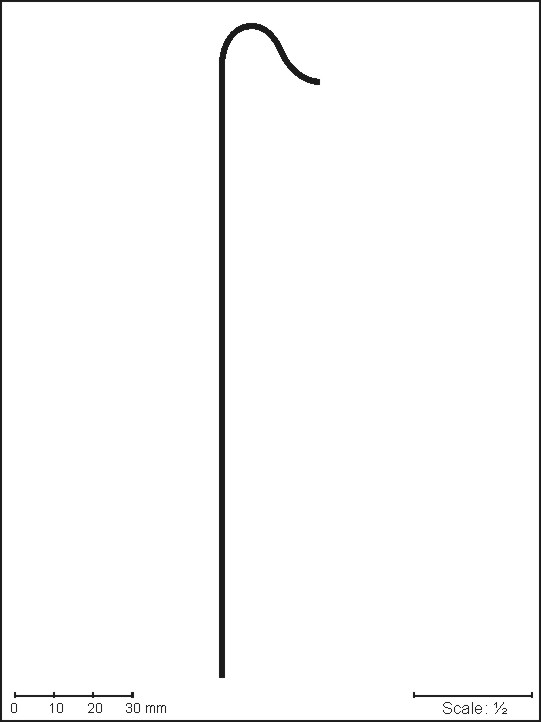

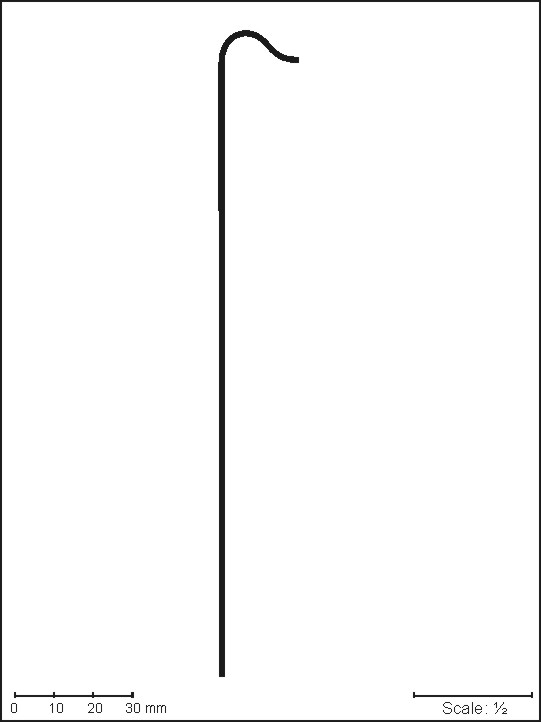

	65 cm	Shepherd Hook 0.8 cm	0	RF-DC3500GM
	65 cm	Shepherd Hook 1.0 cm	0	RF-DC4500GM
	65 cm	Shepherd Hook 1.0 cm	0	RF*DC4500GM
	65 cm	-	0	RF*DD4500GM
	65 cm	-	0	RF-DD5500GM
	65 cm	-	0	RF-DD4500GM
	65 cm	-	0	RF-DD6500GM
	65 cm	-	0	RF-DE4500GM
	80 cm	-	4	RF*FL16008M
	80 cm	-	0	RF-DAB5008M
	80 cm	-	0	RF-DA25008M
	80 cm	-	0	RF-DAC5008M
	80 cm	-	0	RF*DG35008M
	80 cm	-	0	RF-DA15008M
	80 cm	-	0	RF*DA15008M
	80 cm	-	0	RF*FL15008M

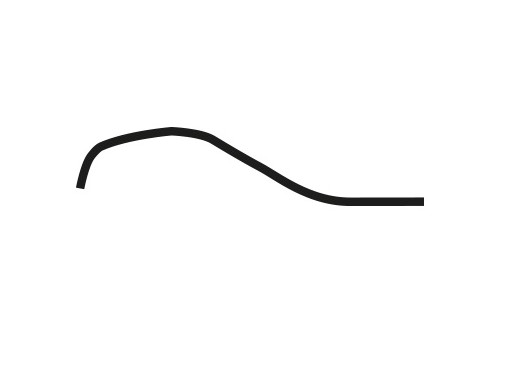

Cerebral shape	100 cm	Bentson-Hanafee-Wilson 1	0	RF-EE15010M

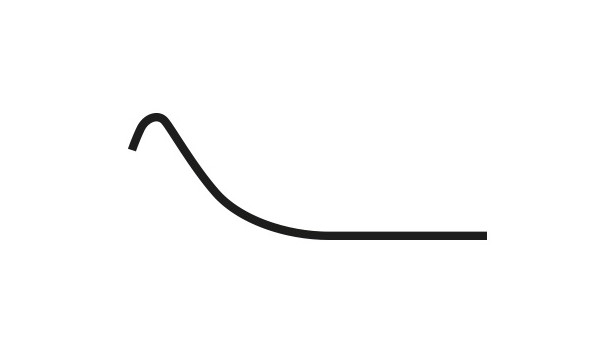

	100 cm	Bentson-Hanafee-Wilson 2	0	RF-EE25010M

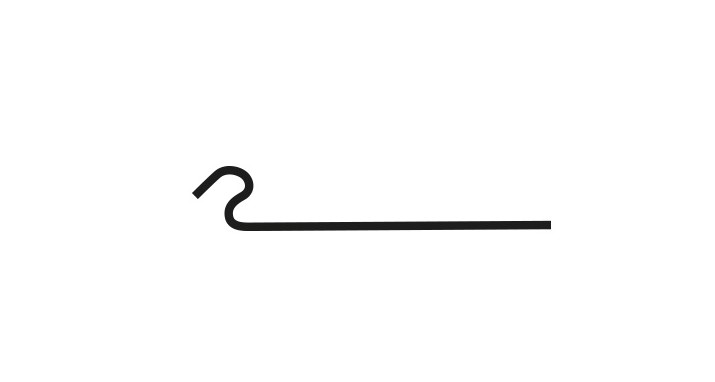

	100 cm	MANI	0	RF-EG15010M
	100 cm	MANI	0	RF*EG15010M

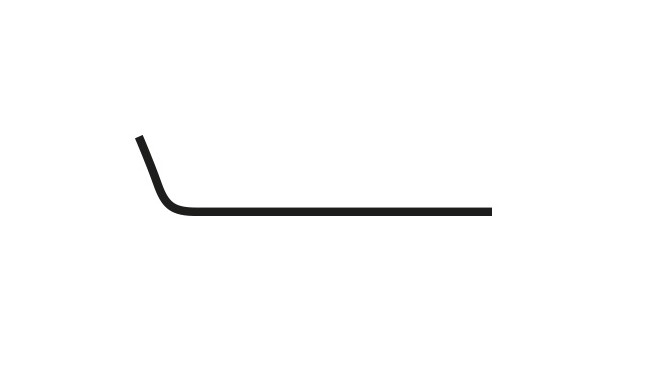

	65 cm	Vertebral	0	RF-EH1500GM
	100 cm	Vertebral	0	RF-EH15010M
	100 cm	Vertebral	0	RF*EH15010M
	100 cm	Newton technique 1	0	RF-EC15010M
	100 cm	-	0	RF-EA45010M
	100 cm	-	0	RF-EC35010M
	100 cm	-	0	RF-EJ15010M
	100 cm	-	0	RF-EB25010M
	100 cm	-	0	RF*EA35010M
	100 cm	-	0	RF-EA35010M
	100 cm	-	0	RF*EC25010M
	100 cm	-	0	RF-EA15010M
	100 cm	-	0	RF*EA15010M
	100 cm	-	0	RF-EC45010M
	100 cm	-	0	RF-EC25010M
	100 cm	-	0	RF-EB35010M
	100 cm	-	0	RF-EB15010M
	100 cm	-	0	RF*EJ15010M
	100 cm	-	0	RF-EA25010M
	100 cm	-	0	RF*EA25010M
	100 cm	Vertebral	2	RF-EH45010M

Enlarge table

Please quote above item reference codes when placing an order.
Other code numbers are available on special demand. For any further information, please contact your local Terumo representative.
