Post-treatment Visualization and Quantification

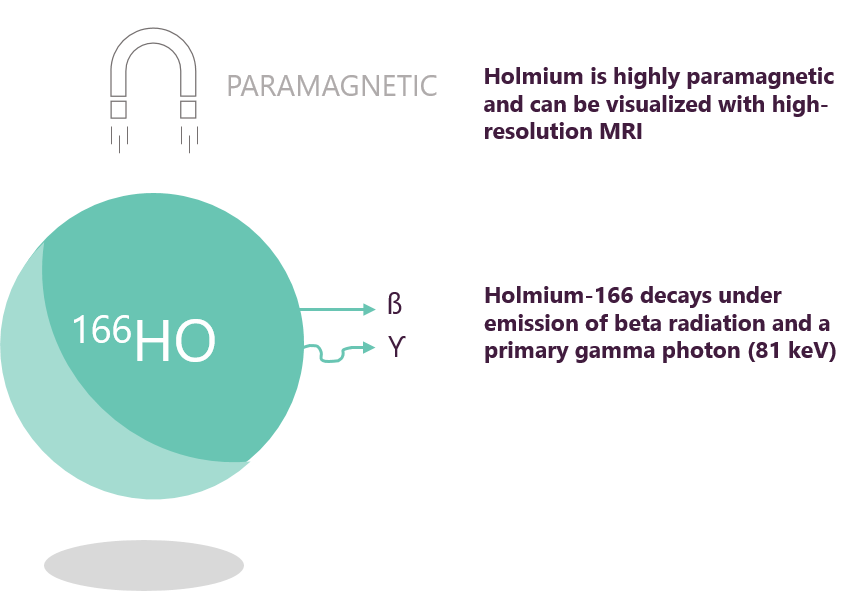

Holmium-166
microspheres allow for post-treatment visualization and quantification using
MRI and SPECT, for further analysis in
Q-SuiteTM
“QuiremSpheres™ gives us the confidence we need to start individualizing treatments”
Prof.
Dr.
Ralf-Thorsten Hoffmann, Head of Interventional Radiology, University Hospital
Dresden

Q-SuiteTM

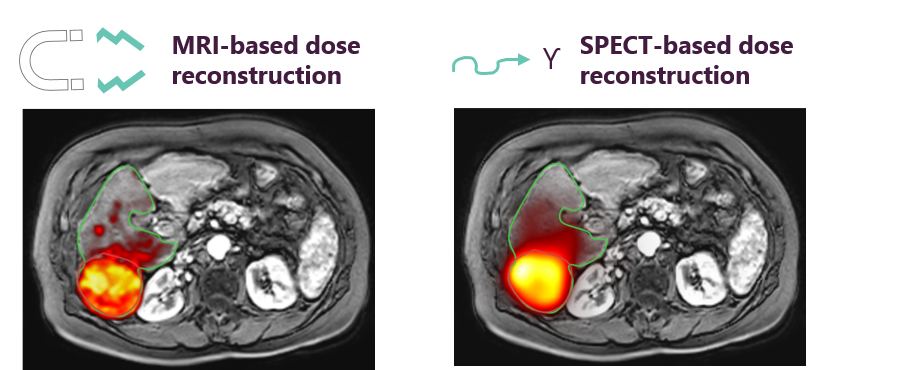

Q-SuiteTM: accurate
post-treatment dosimetry to verify the radiation dose delivered
- Dose Reconstruction based
on quantitative Holmium-166 MRI or SPECT
- Evaluation of Dose absorbed
in tumour and in healthy liver tissue
Deliver
with
ease

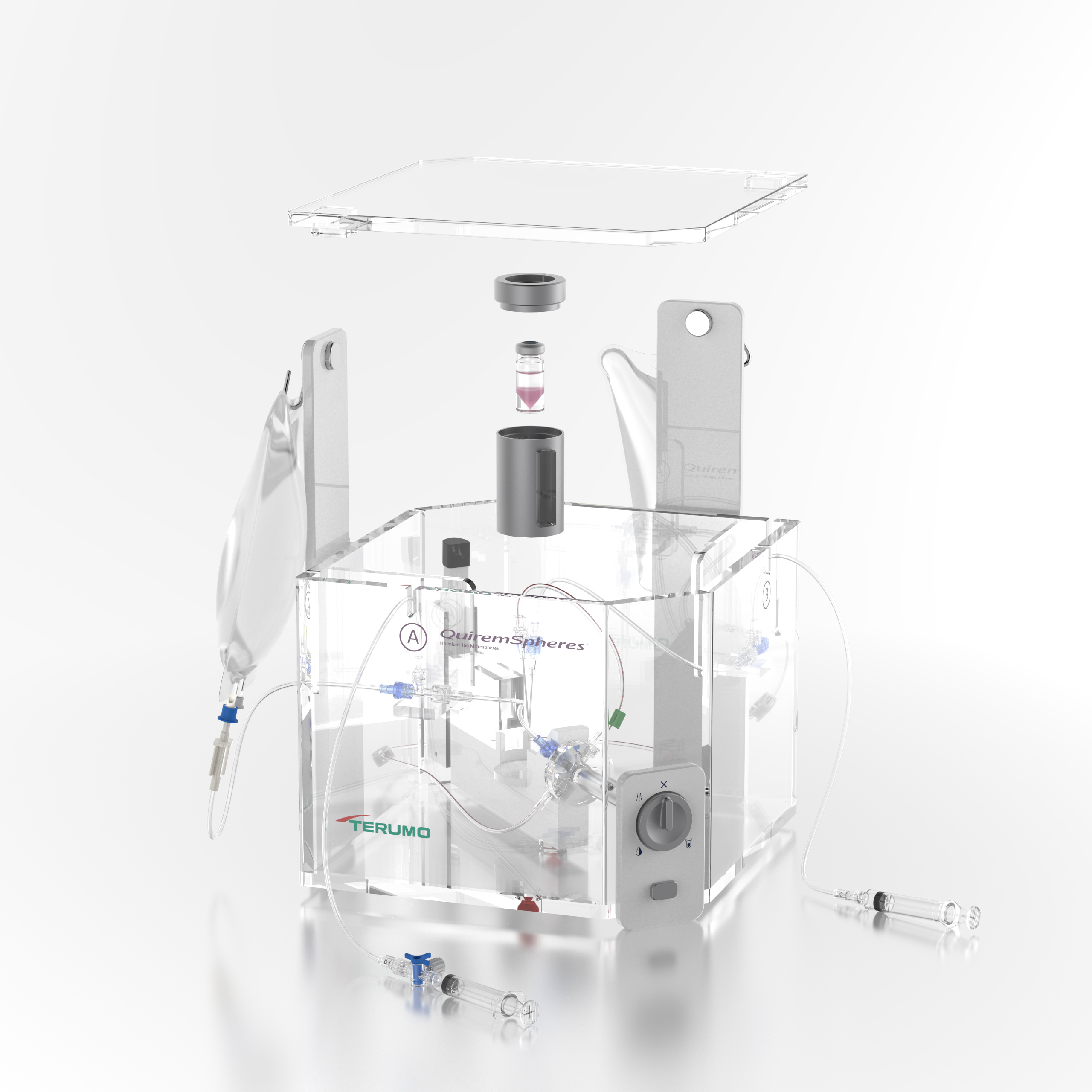

QuiremSpheres® and
QuiremScout® use the same intuitive and efficient administration system
The
system is easy to learn – it
has been developed in collaboration with leading SIRT physicians and
incorporates features that you may already be familiar with if you have
performed SIRT.
Preparation
Browse Gallery (2)
General specifications
QuiremSpheresTM is supplied as a standard dose in a single capped V-vial or as a standard dose divided among several capped V-vials.
Isotope | Holmium-166 | Yt-90 |
Beta-radiation (Emax) | 1.77 MeV (48.7%) 1.85 MeV (50.0%) | 2.28 MeV |
Gamma-radiation | 81 keV (6.7%) | - |
Visible on MRI | Yes | No |
Half-life | 26.8 hours | 64.1 hours |
Material | Poly(L-lactic acid) | Resin (r) or glass (g) |
Diameter | 15-60 μm | 20-60 μm (r) 20-30 μm (g) |
Density | 1.4 g/cm3 | 1.6 g/cm3 (r) 3.3 g/cm3 (g)
|
Software Requirements
| Hardware Recommendations
|
- x64 based computer running Microsoft Windows 7, 8.1 or 10
| - Dual-core CPU, 2.0GHz or higher
- 16 GB RAM
- SSD with 20 GB free disk space
- Screen resolution 1920x1080 or higher
|
Item specifications
QS-V001 | Holmium-166 microspheres,QuiremSpheres™
| V-vial containing a patient-specific dose of QuiremSpheres™
|
QS-C001 | Customer kit
| Set of re-usable administration box and accessories for administration of QuiremSpheres™
|
QS-D001 | Delivery set | Set of sterile single-use tube lines for administration of QuiremSpheres™ (in a carton of 6 pieces)
|
8QSQ002
| Q-Suite™
| Holmium 166 SIRT planning & post-treatment verification software
|
References
1 HEPAR I: Smits et al, 2012 Lancet Oncology 2 HEPAR II: Prince et al, 2017 Journal of Nuclear Medicine
