Coronary Imaging Catheter


Discover new dimensions

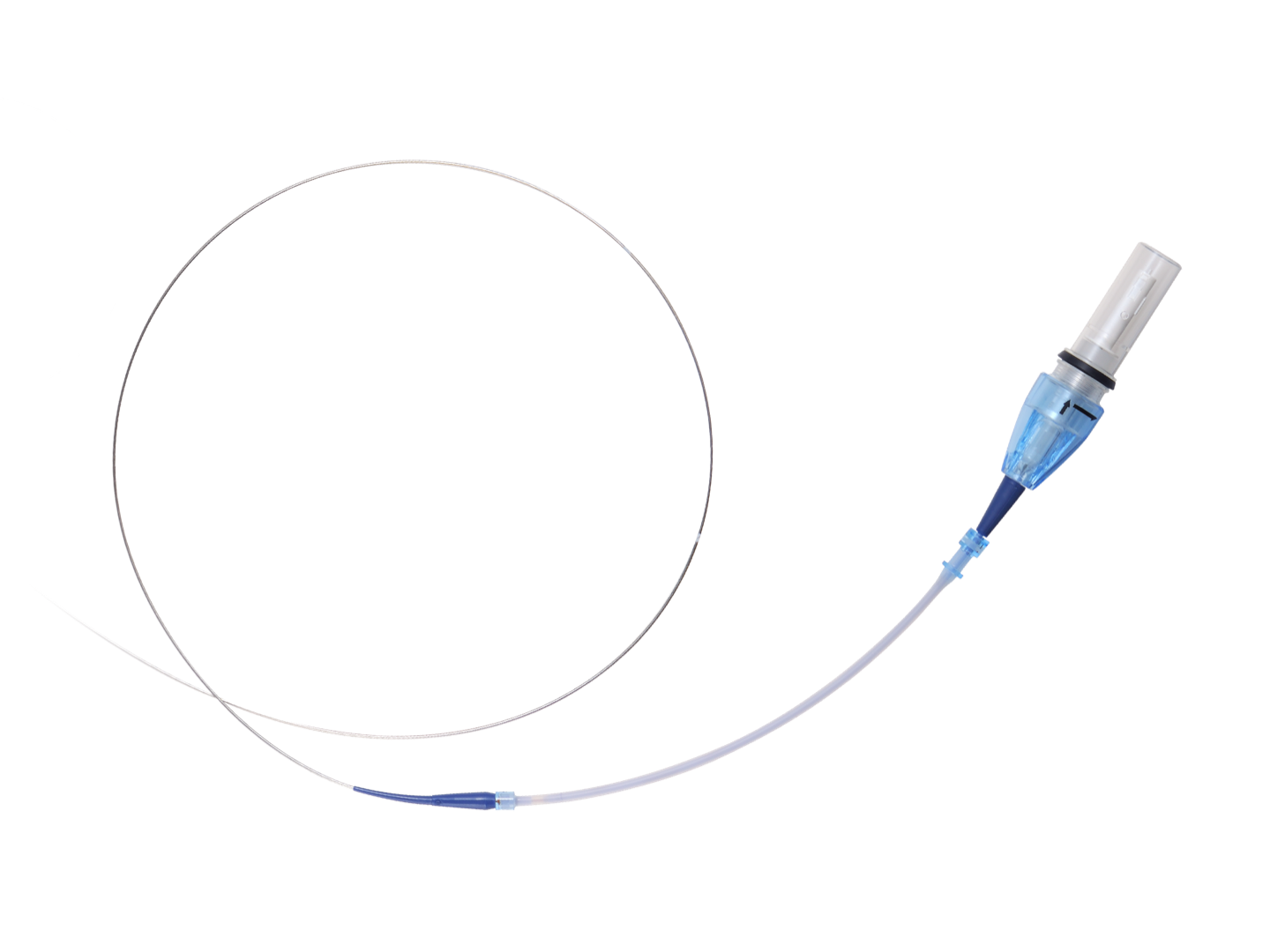

The Fastview catheter is intended to be used for imaging and inspecting coronary artery lumen and the surface layer of vessel walls by using near-infrared light.

The Fastview catheter features an innovative design that provides excellent deliverability, ease of use and reliability.1


  • No need to flush inside thanks to closed system. Plug and play system
  • 2.6 Fr low-profile catheter with proven hydrophilic coating enabling excellent trackability1
  • Corrugated shaft and reinforcement coil prevents kinking
  • Short distance from lens to marker allows you to see lens position
  • 150 mm pullback length for long vessel observation

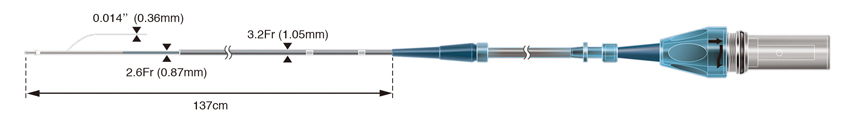

Item specifications

Item referenceProfileSensor position from tipGW diameterUsable lengthSaline primingPullback length
OP-16P26132.6 Fr24 mm0.014" (0.36 mm)137 cmNo150 mm

Please quote above item reference code when placing an order.


1 Data on file: Deliverability test 2015/5/12. Tests performed by Terumo Corporation.
