CAPIOX® Hemoconcentrators



Efficiently concentrates blood using a polysulfone membrane material at high ultrafiltration rate


  • High ultrafiltration rate
  • No rinse for easy setup
  • Low prime volume
  • Smooth blood flow
  • High visibility
  • Wide product range

General specifications

​Fiber material
​Effective surface area​Approx. 1.1 m²​Approx. 0.5 m²
​Priming volume​67 mL​34 mL
​Blood ports
​1/4" (6,4 mm) slip​1/4" (6,4 mm) slip
​Filtrate port​1/2" (12,7 mm) (1/4" 6,4 mm adapter)​1/2" (12,7 mm) (1/4" 6,4 mm adapter)
​Blood flow range​Min. 100 - Max. 500 mL/min*​Min. 100 - Max. 500 mL/min*
​Maximum transmembrane pressure​500 mmHg (67 kPa)​500 mmHg (67 kPa)

*At least 5° mL/min is recommended during suspension of ultrafiltration

Item specifications

CAPIOX® Hemoconcentrators

Description​Catalog #Units/Case

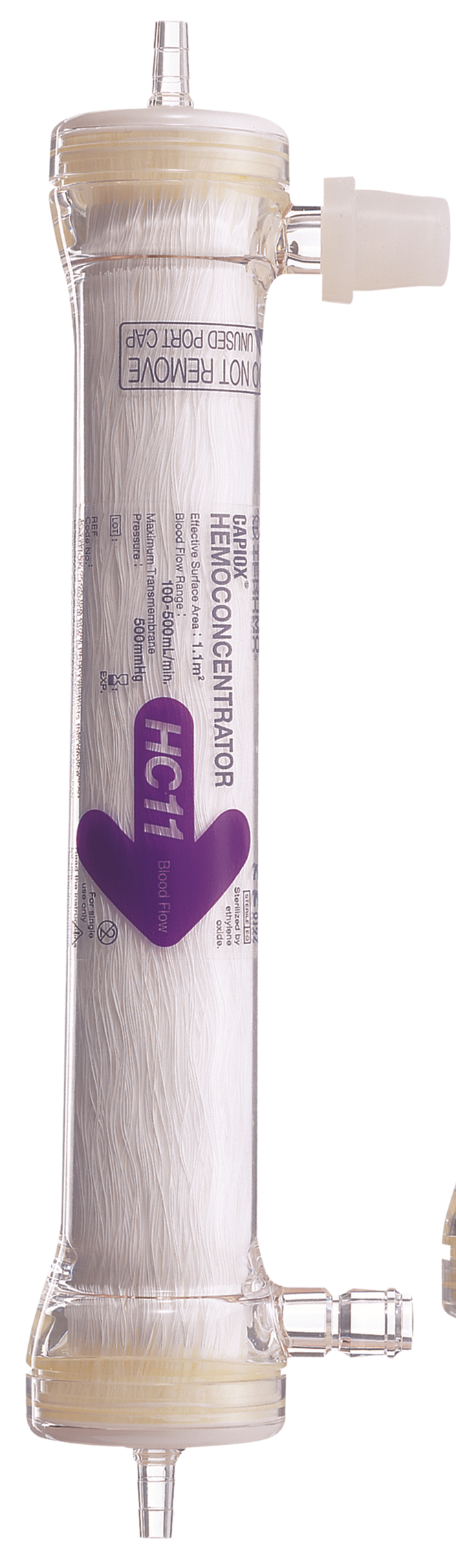

Capiox Hemoconcentrators HC11.png​ ​ ​​CAPIOX® Hemoconcentrators with tubing
​Adult HemoconcentratorCX*HC11S​10

CAPIOX® Pediatric Hemoconcentrator

​Catalog #Units/Case

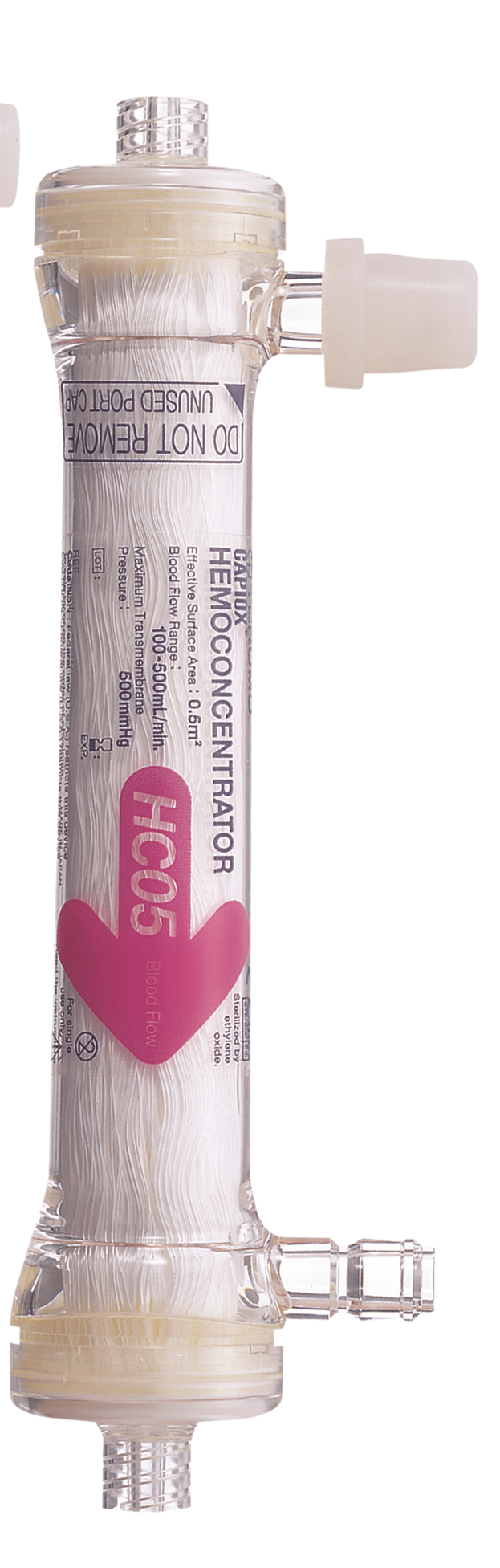

Capiox Hemoconcentrators HC05.png​ ​ ​ ​
​Pediatric hemoconcentrator with tubing
Pediatric hemoconcentratorCX*HC05S​10


​DescriptionCatalog #Units/Case
​Holder for CAPIOX® Hemoconcentrators​XX*XH071​1
