CAPIOX® FX Advance

Oxygenator

Description

Advanced to the Next Level​

The Capiox® FX Advance Oxygenator with Integrated Arterial Filter advances your oxygenator to the next level by enhancing flow dynamics1 resulting in lower reservoir minimum operating levels and increased maximum blood flow rates. Now, you can expand your options and choose a smaller, lower prime oxygenator for even more patients.

Characteristics

  • The design of the Capiox® FX Advance Oxygenator contributes to fewer blood transfusions2
  • Improved flow dynamics reduces blood turbulence and enhance gaseous microemboli removal3
  • Rotating, curved venous inlet enhances ease-of-use
  • Increased maximum blood flow to 5 L/min on the CAPIOX® FX15 Advance Oxygenator, with 3.000 mL reservoir, for use on a wider range of patients*
  • Decreased minimum operating level of 150 mL on the CAPIOX® FX15 and FX25 Advance Oxygenators, with the 4.000 mL reservoir, reduces hemodilution3

* Use of Vacuum Assisted Venous Drainage may be required to achieve flow rate of 5 L/min.

Clinical evidence

Prescriptive Patient Extracorporeal Circuit and Oxygenator Sizing Reduces Hemodilution and Allogeneic Blood Product Transfusion during Adult Cardiac Surgery
Bronson SL et al. “Prescriptive patient extracorporeal circuit and oxygenator sizing reduces hemodilution and allogeneic blood product transfusion during adult cardiac surgery.” The journal of extra-corporeal technology vol. 45,3 (2013): 167-72.

Prescriptive Patient Extracorporeal Circuit and Oxygenator Sizing Reduces Hemodilution and Allogeneic Blood Product Transfusion during Adult Cardiac Surgery
Bronson SL et al. “Prescriptive patient extracorporeal circuit and oxygenator sizing reduces hemodilution and allogeneic blood product transfusion during adult cardiac surgery.” The journal of extra-corporeal technology vol. 45,3 (2013): 167-72.

Clinical evaluation of the novel Capiox NX19 adult oxygenator–a multicenter study
Hendrix, Rik H J et al. “Clinical evaluation of the novel Capiox NX19 adult oxygenator-a multicenter study.” Perfusion, 2676591221078942.

See all clinical evidence

General specifications

Oxygenator

OxygenatorFX15FX25
Housing material
Polycarbonate ​
Fiber material Microporous polypropylene ​
Heat exchanger materialStainless steel ​
Fiber bundle surface areaApprox. 1.5 m²Approx. 2.5 m²
Heat exchanger surface areaApprox. 0.14 m²Approx. 0.2 m²
Blood flow range0.5 - 5.0 L/min0.5 - 7.0L/min
Priming volume (static)144 mL260 mL
Blood inlet port (from pump)3/8" (9.5 mm) ​
Blood outlet port 3/8" (9.5 mm) ​
Cardioplegia port1/4" (6.4 mm) ​
Luer port (for recirc. or blood cardioplegia)N/A ​
Gas inlet port1/4" (6.4 mm) ​
Gas outlet port1/4" (6.4 mm) ​
Water ports1/2" (12.7 mm) Hansen quick connect fitting ​
Maximum pressure: Blood Inlet133 kPa ( 1.000 mmHg) (1.36 kgf/cm²) ​
Maximum pressure: Water Inlet196 kPa (1.470 mmHg) (2kgf/cm²) ​

Arterial filter

Arterial filterFX15FX25
Filter materialPolyester screen type ​
Pore size32 µm ​
Surface area360 cm²600 cm²

 Hardshell reservoir

Hardshell reservoirR30C (For FX15)R40C (For FX15)FX25
Housing materialPolycarbonate ​ ​
Venous filter materialPolyester screen type, pore size 47 µm ​ ​
Cardiotomy filter materialPolyester depth type ​ ​
Defoamer materialPolyurethane foam ​ ​
Blood flow range: Venous flow0.5 - 5.0 L/min

0.5 - 5.0 L/min0.5 - 7.0 L/min
Blood flow range: Cardiotomy inletMax. 4.0 L/minMax. 5.0 L/minMax. 5.0 L/min
Blood flow range: Cardiotomy inletMax. 5.0 L/minMax. 5.0 L/minMax. 7.0 L/min
Blood storage capacity3,000 mL4,000 mL4,000 mL
Minimum operating volume70 mL150 mL150 mL
Venous blood inlet port3/8" (9.5 mm) Rotatable1/2" (12.7 mm) Rotatable1/2" (12.7 mm) Rotatable
Blood outlet port (to pump)3/8" (9.5 mm) ​ ​
Suction portSix, 1/4" (6.4 mm) ​ ​
Vertical port to CR filter3/8" (9.5 mm) ​ ​
Quick prime port1/4" (6.4 mm) ​ ​
Vent port 1/4" (6.4 mm) ​ ​
Auxiliary port1/4" - 3/8" (6.4 mm - 9.5 mm) ​ ​
Luer portsThree filtered luer locks to cardiotomy filter, one non-filtered luer lock, two luer locks on venous inlet. ​ ​
Maximum sustainable negative pressure in reservoir-20 kPa ( -150 mmHg)  ​ ​
Positive pressure relief valve1.1 kPa ( 0 - 8 mmHg)  ​ ​

Xcoating-Logo-TM_CMYK.pngXcoating™ Surface Coating, Terumo Corporation's biocompatible amphiphilic polymer surface coating, is a standard feature on the CAPIOX® FX Advance Oxygenators.

Item specifications

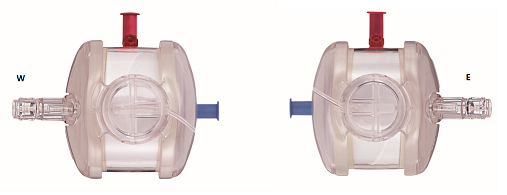

Choose the blood outlet port configuration that best suits your circuit.

West outlet port
Oxy inlet on right when outlet is
facing away from user

​East outlet port
Oxy inlet on left when outlet is
facing away from user



CAPIOX® FX15 Advance Oxygenators

Description
​Catalog #
Units/Case
​ ​OxygenatorFXAdvanded3000ml.PNG​With integrated arterial filter, 3.000 mL hardshell reservoir, "west" orientation1
3CX*FX15RW30C​4
​With integrated arterial filter, 3.000 mL hardshell reservoir, “east” orientation1
3CX*FX15RE30C​4​

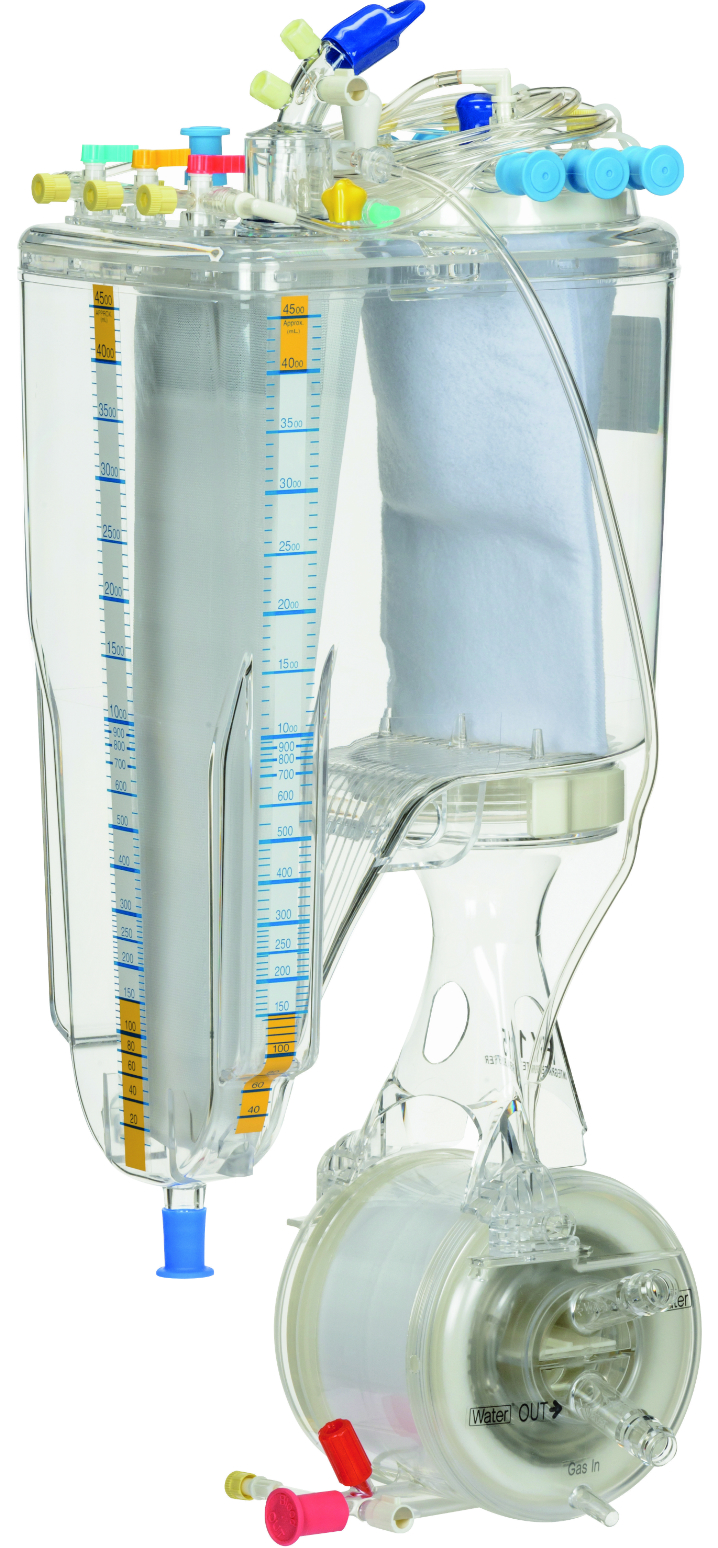

​ ​003_PROD_FX Advance FX15 Full Oxygenator_OCT2015.jpgWith integrated arterial filter, 4.000 mL hardshell reservoir, “west” orientation​3CX*FX15RW40C​4​
With integrated arterial filter, 4.000 mL hardshell reservoir, “east” orientation​​3CX*FX15RE40C

4​

1 Contains four 1/4“ - 3/8“ adapters


CAPIOX® FX25 Advance Oxygenator

Description​Catalog #Units/Case

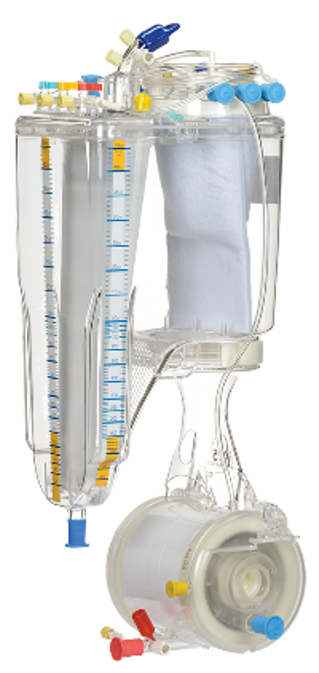

OxygenatorFX25Advanded4000ml.PNG​ ​With integrated arterial filter, 4.000 mL hardshell reservoir, “west” orientation ​3CX*FX25RWC4​
With integrated arterial filter, 4.000 mL hardshell reservoir, “east” orientation​
3CX*FX25REC​4​


Holders for CAPIOX® FX Advance Oxygenators

Description
​Catalog #Units/Case

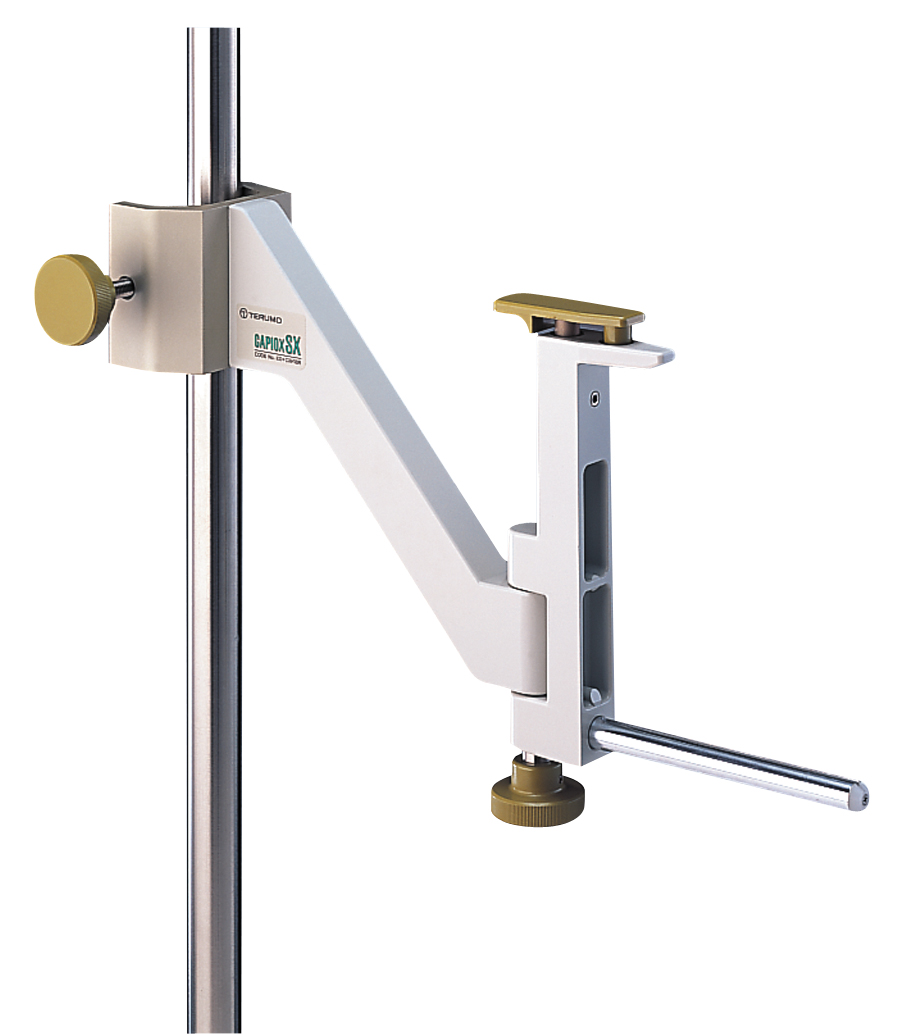

XX_CXH18R.jpgHolder for​ FX15 and FX25 Advance oxygenators with hardshell reservoir (long angled)
XX*CXH18R​​1

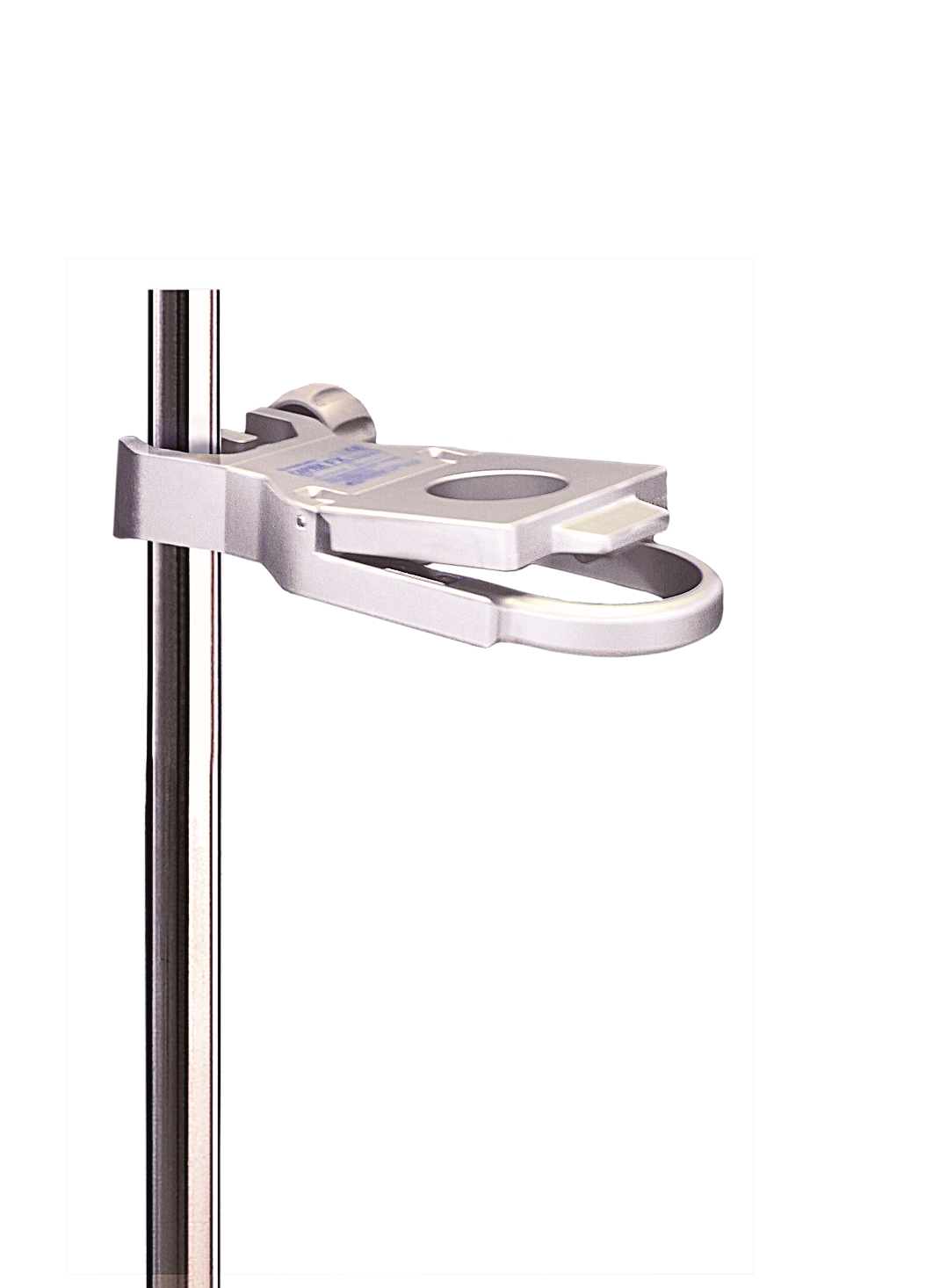

Holder for FX15 and FX25 Advance oxygenators when separated from reservoir​XX*CXH25F​1​

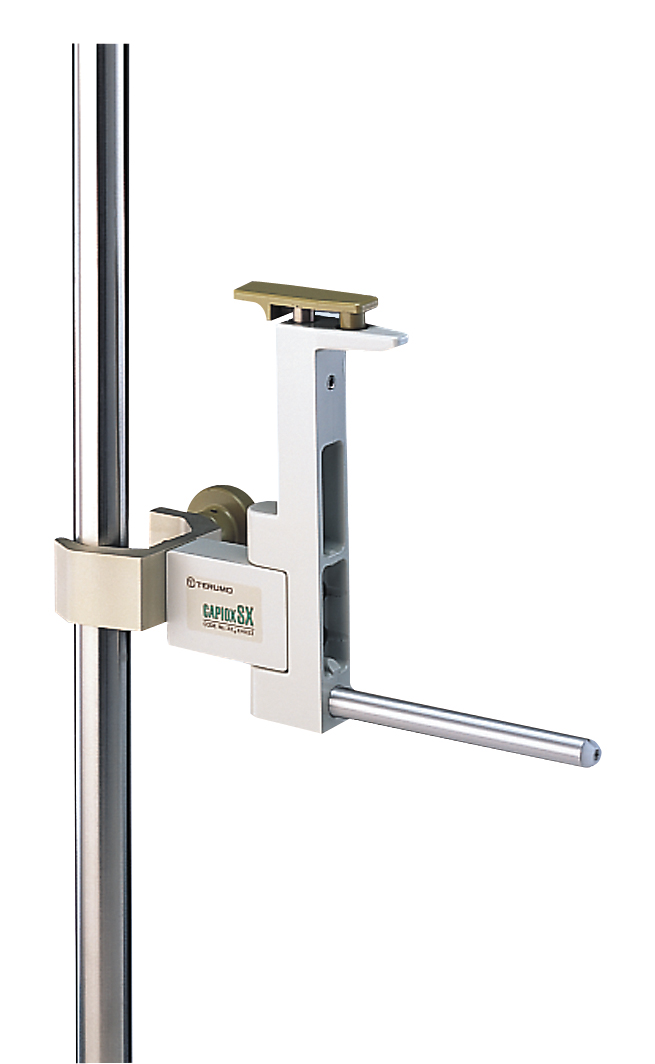

Holder for FX15 and FX25 Advance oxygenators with hardshell reservoir (short non-angled arm)​​XX*XH0321​


Accessories for CAPIOX® FX Advance Oxygenators

​Description
​Catalog #
​Units/Case
​Blue thermistor wireCX*BP021​10​
Red thermistor wire​CX*BP022​10​

References

​1Internal testing, data on file.

2Lahanas, A., et al. A retrospective comparison of blood transfusion requirements during cardiopulmonary bypass with two different small adult oxygenators. Perfusion. July 2013; 28(4).

3Bronson, S., et al. Prescriptive Patient Extracorporeal Circuit and Oxygenator Sizing Reduces Hemodilution and Allogeneic Blood Product Transfusion during Adult Cardiac Surgery. JECT. 2013;45:167-172.
