CAPIOX® Closed Reservoir



Cardiotomy reservoirs for high-efficiency filtration, defoaming and removal of foreign particles.


  • ​Excellent visibility

General specifications

Housing materialPolycarbonate ​
​Filter material
Polyester depth type
​Defoamer material
​Polyurethane foam
Reservoir capacity1.000 mL4.000 mL
Maximum blood flow1.5 L/min5.0 L/min
Filter efficiencyRemoves 90% or more of particles with ≥ 20 µm diameter  ​
Blood inlet portsFive suction ports: 3/16" (4,8 mm) - 1/4" (6,4 mm)

Six suction ports: 1/4" (6,4 mm)

One vertical port: 3/8" (9,5 mm)

Prime port1/4" (6.4 mm) filtered  ​
Luer ports

Four: filtered luer locks

One: non-filtered luer lock

Vent port1/4" (6.4 mm) ​
Blood outlet port1/4" (6.4 mm)3/8" (9.5 mm)

Xcoating-Logo-TM_CMYK.pngXcoating™ Surface Coating, Terumo Corporation's biocompatible amphiphilic polymer surface coating, is a standard feature on the CAPIOX® Cardiotomy Reservoir.

Item specifications

Description​Catalog #Units/Case

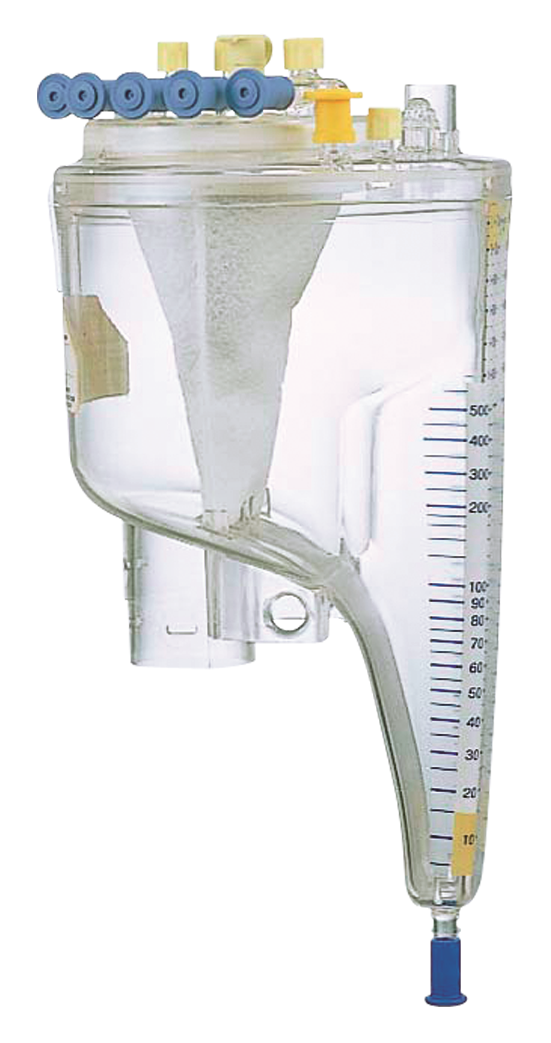

CX_CR10NX.png​Cardiotomy reservoir with filter, 1.000 mL​CX*CR10NX10​

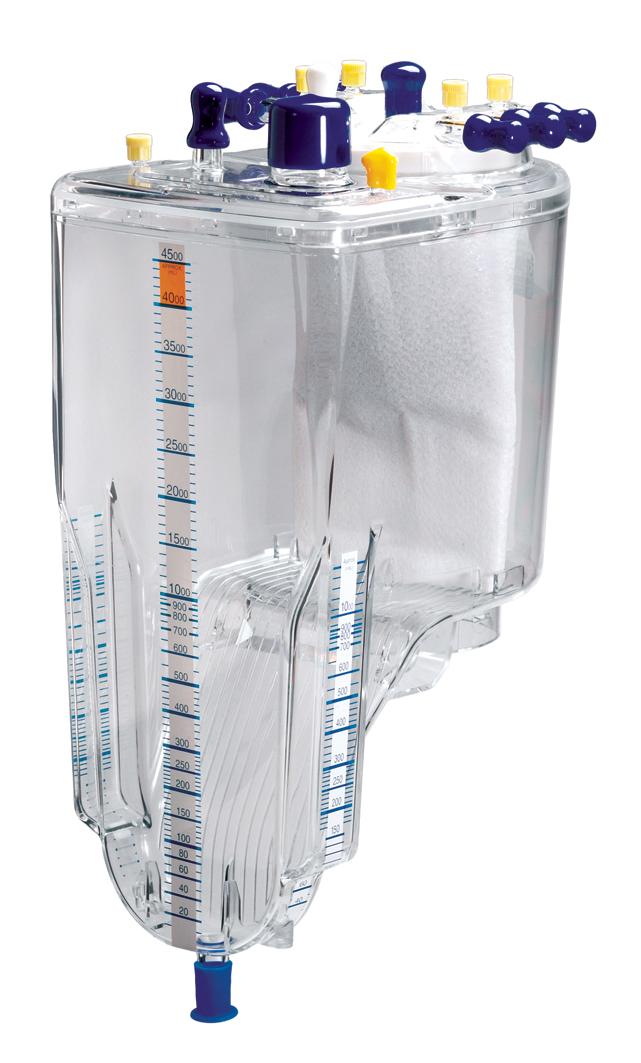

CXCRXA.jpgCardiotomy reservoir with filter, 4.000 mL​CX*CRXA​

Holders for Capiox® Cardiotomy Reservoir

Description​Catalog #Units/Case

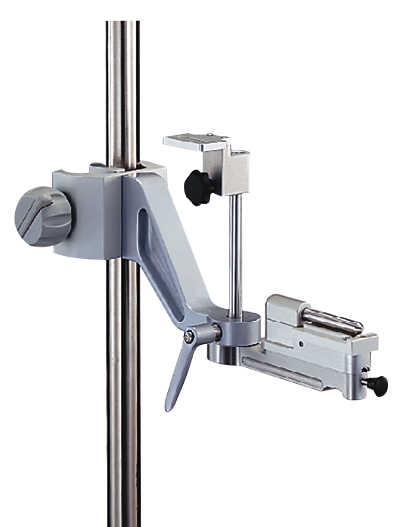

XX_CXH05R.jpgHolder for Capiox® CR10NX Cardiotomy reservoir
XX_CXH18R.jpgHolder for Capiox® CRXA Cardiotomy reservoir
XX_XH032.jpgHolder for Capiox® CRXA Cardiotomy reservoir
