CAPIOX® Advance Hardshell Venous Reservoir



 The Capiox® Advance Hardshell Venous Reservoir is a fully featured reservoir with improved flow dynamics.1


  • Low minimum operating volume
  • Optimal air handling
  • Excellent visibility

General specifications

CAPIOX® Advance Hardshell Venous Reservoirs
Housing materialPolycarbonate
Venous filter materialPolyester screen, pore size 47 µm
Cardiotomy filter materialPolyester depth type
Defoamer materialPolyurethane foam
Venous Inlet flow range

Min. 0.5 L/min

Max. 7.0 L/min

Cardiotomy Inlet flow rateMax. 5.0 L/min
Combined flow rate (venous and cardiotomy)Max. 7.0 L/min
Blood storage capacity4.000 mL
Minimum operating volume150 mL
Venous blood inlet port1/2" (12.7 mm) rotatable
Blood outlet port (to pump)3/8" (9.5 mm)
Suction portsSix 1/4" (6.4 mm)
Vertical port (to CR filter)3/8" (9.5 mm)
Quick prime port1/4" (6.4 mm)
Vent port1/4" (6.4 mm)
Auxiliary port1/4" - 3/8" (6.4 mm - 9.5 mm)
Luer portThree filtered luer locks to cardiotomy filter, a not-filtered luer lock and two luer locks on venous inlet
Maximum sustainable negative pressure in reservoir-20.0 kPa ( -150 mmHg)

Xcoating™ Surface Coating,Terumo Corporation's biocompatible amphiphilic polymer surface coating, is a standard feature on the CAPIOX® Advance Hardshell Venous Reservoir.

Item specifications

Description​Catalog #Units/Case

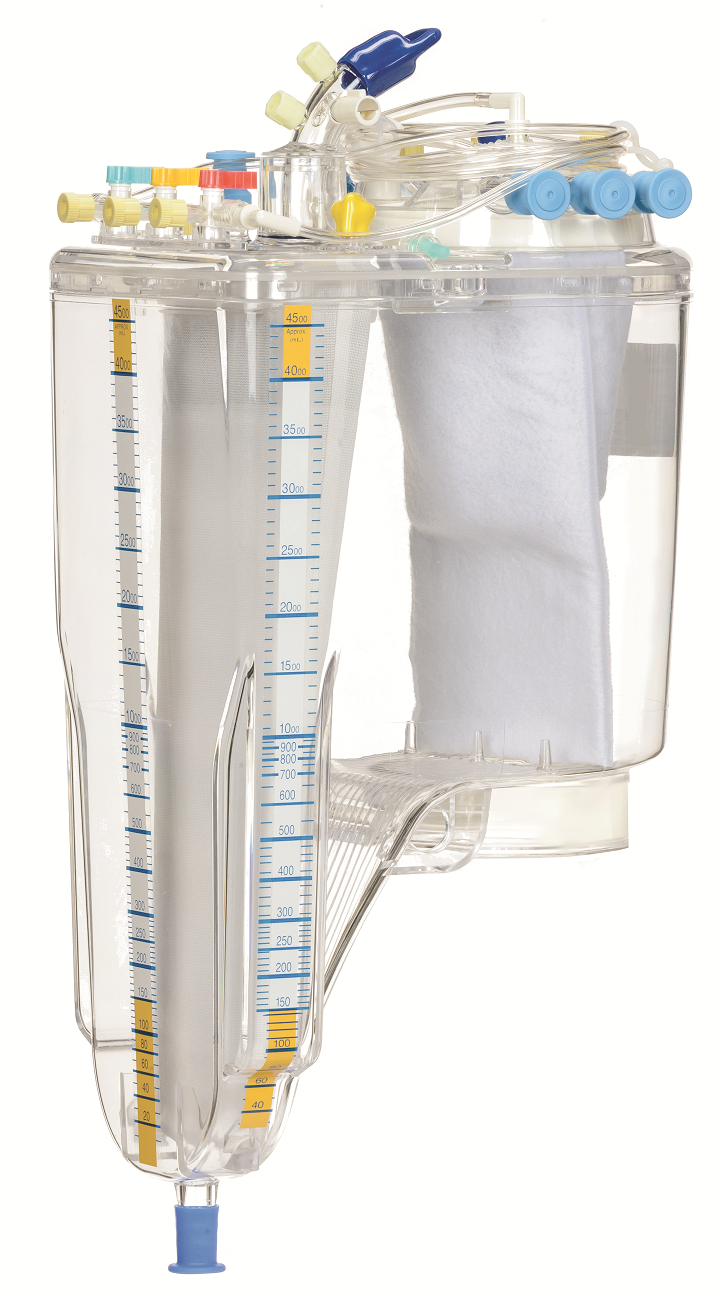

C3XR4000C_Advance_MAR2016[1].png​Advance Hardshell venous reservoir, 4.000 mL


Holders for Capiox® Advance Hardshell Venous Reservoir

Description​Catalog #Units/Case
XX_CXH18R.jpg​Holder for oxygenator with hardshell reservoir (long angled arm)
XX_XH032.jpg​Holder for oxygenator with hardshell reservoir (short non-angled arm)


1Internal testing, data on file.
