Heartrail™ II

Guiding Catheter

Description

Optimize your challenging procedure

Heartrail II is developed to maximize your back-up force when using right and left Ikari curves during transradial interventions and through its innovative 5-in-6 system.

Characteristics

Benefit fully from using dedicated curves for radial access

Right and left Ikari curves are developed to maximize your back-up force during TRI via the right radial artery
Tiger curves are designed to be used for both right and left coronary arteries

Feel the difference with the innovative 5-in-6 system

By inserting a 5 Fr (120 cm with flexible distal portion) into a 6 Fr guiding catheter:

Provides the back-up support of a 7 Fr guiding catheter with a 6 Fr system
Minimizes puncture injuries
Increases your back-up support for an excellent PTCA balloons crossing success rate¹

General specifications

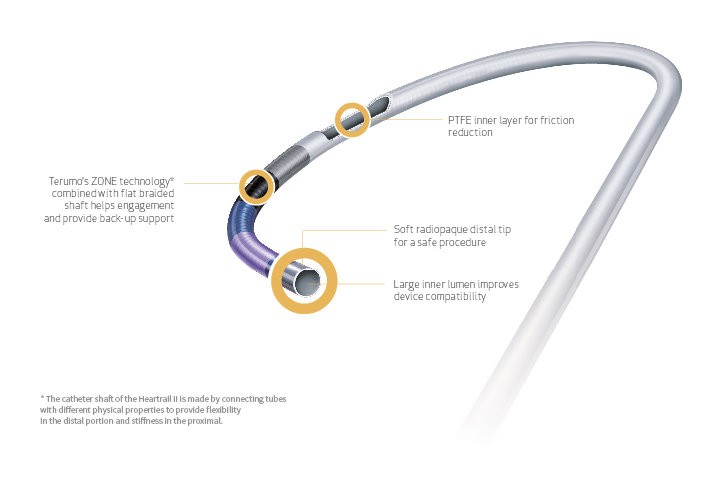

Shaft inner layer material	Polytetrafluoroethylene - PTFE
Braiding	High strength flat wire mesh pattern
Inner diameter	5 Fr - 0.059" (1.50 mm) 6 Fr - 0.071" (1.80 mm) 7 Fr - 0.081" (2.06 mm)
Usable length	100 cm 120 cm – Heartrail 5 in 6 system

Enlarge table

Item specifications

Curve type	Shape type	Shape code	5 Fr	6 Fr	7 Fr
Standard curves	Amplatz Left	AL 1	GC-K5AL010N	GC-K6AL010N	GC-K7AL010N
		AL 2	GC-K5AL020N	GC-K6AL020N	GC-K7AL020N
		AL 3	GC-K5AL030N	GC-K6AL030N	GC-K7AL030N
	Amplatz Right	AR 1	GC-K5AR010N	GC-K6AR010N	GC-K7AR010N
	Amplatz Right	AR 2	GC-K5AR020N	GC-K6AR020N	GC-K7AR020N
	Judkins Left	JL 3	—	GC-K6JL300N	—
		JL 3.5	GC-K5JL350N	GC-K6JL350N	GC-K7JL350N
		JL 4	GC-K5JL400N	GC-K6JL400N	GC-K7JL400N
		JL 4.5	GC-K5JL450N	GC-K6JL450N	GC-K7JL450N
		JL 5	GC-K5JL500N	GC-K6JL500N	GC-K7JL500N
		JL 6	GC-K5JL600N	GC-K6JL600N	GC-K7JL600N
	Judkins Right	JR 3	—	GC-K6JR300N	—
		JR 3.5	GC-K5JR350N	GC-K6JR350N	GC-K7JR350N
		JR 4	GC-K5JR400N	GC-K6JR400N	GC-K7JR400N
		JR 4.5	GC-K5JR450N	GC-K6JR450N	GC-K7JR450N
		JR 5	GC-K5JR500N	GC-K6JR500N	GC-K7JR500N
		JR 6	GC-K5JR600N	GC-K6JR600N	GC-K7JR600N
Stronger backup curves	BackUp for left coronary	BL 2.5	—	GC-K6BL250N	—
		BL 3	GC-K5BL300N	GC-K6BL300N	GC-K7BL300N
		BL 3.5	GC-K5BL350N	GC-K6BL350N	GC-K7BL350N
		BL 4	GC-K5BL400N	GC-K6BL400N	GC-K7BL400N
		BL 4.5	GC-K5BL450N	GC-K6BL450N	GC-K7BL450N
	BackUp for right coronary	BR 3.5	—	GC-K6BR350N	—
	BackUp for right coronary	BR 4	—	GC-K6BR400N	—
Other curves	Multipurpose	MPA-Large	GC-K5MP030N	GC-K6MP030N	GC-K7MP030N
Curves for bypass	IMA	IMA 1.0	GC-K5IMA10N	GC-K6IMA10N	GC-K7IMA10N
	Bypass	BP-L	GC-K5BP010N	—	GC-K7BP010N
	Bypass	BP-R	GC-K5BP020N	GC-K6BP020N	GC-K7BP020N
Curves for radial access	Ikari-Curve Left	IL 3	—	GC-K6IL300N	—
		IL 3.5	GC-K5IL350N	GC-K6IL350N	GC-K7IL350N
		IL 4	GC-K5IL400N	GC-K6IL400N	GC-K7IL400N
		IL 4.5	—	GC-K6IL450N	—
	Ikari-Curve Right	IR 1	—	GC-K6IR100N	—
		IR 1.5	GC-K5IR150N	GC-K6IR150N	GC-K7IR150N
		IR 2	GC-K5IR200N	GC-K6IR200N	GC-K7IR200N
	Tiger	TIG 5	GC-K5TR500N	GC-K6TR500N	GC-K7TR500N
	JR Catarina	ER 4	—	GC-K6ER400N	—
	VD Radial	VDR-L	—	GC-K6DR060N	—
5 in 6 system		Straight	GC-K5ST012NQ	—	—

Enlarge table

Please quote above item reference codes when placing an order.

References

¹Takahashi et al.; New method to increase a Backup support of a 6 French Guiding coronary catheter, Catheterization and Cardiovascular Interventions 63:452-456 (2004).
² Compared to smaller inner lumen guiding catheters.
